Removal & Installation

Taillight (Lower Taillight)

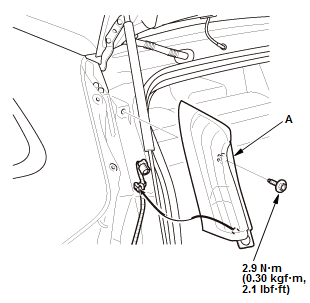

• 1. Taillight (Lower Taillight) - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the lower taillight (A)

  2. Disconnect the connectors.

• 2. All Removed Parts - Install the parts in the reverse order of removal.

  Taillight (Upper Taillight)

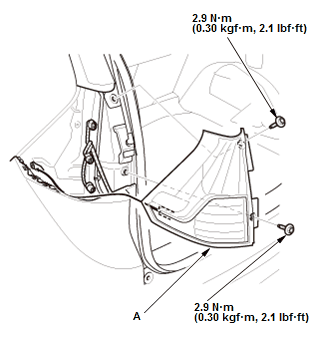

• 1. Taillight (Lower Taillight) - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the lower taillight (A)

  2. Disconnect the connectors.

• 2. Taillight (Upper Taillight) - Remove

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the upper taillight (A)

  2. Disconnect the connector.

• 3. All Removed Parts - Install the parts in the reverse order of removal.
