Exterior Lights Circuit Diagram

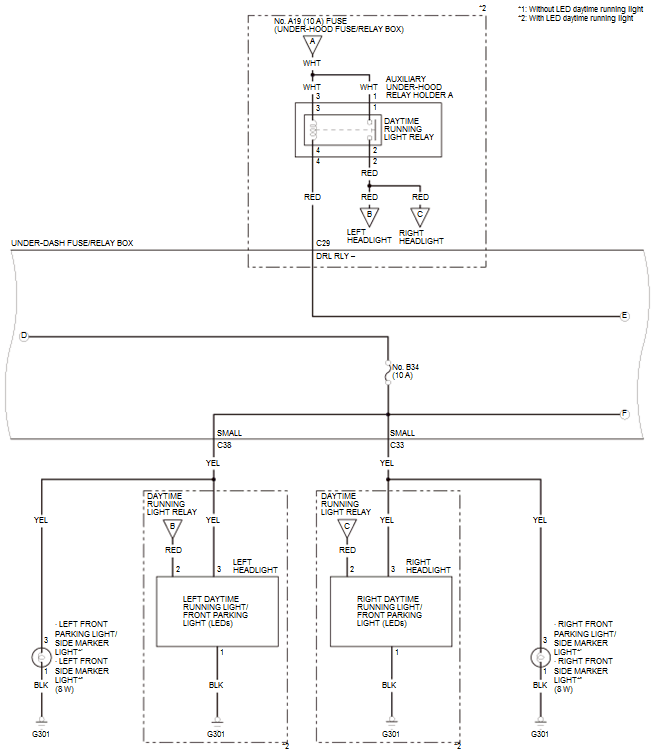

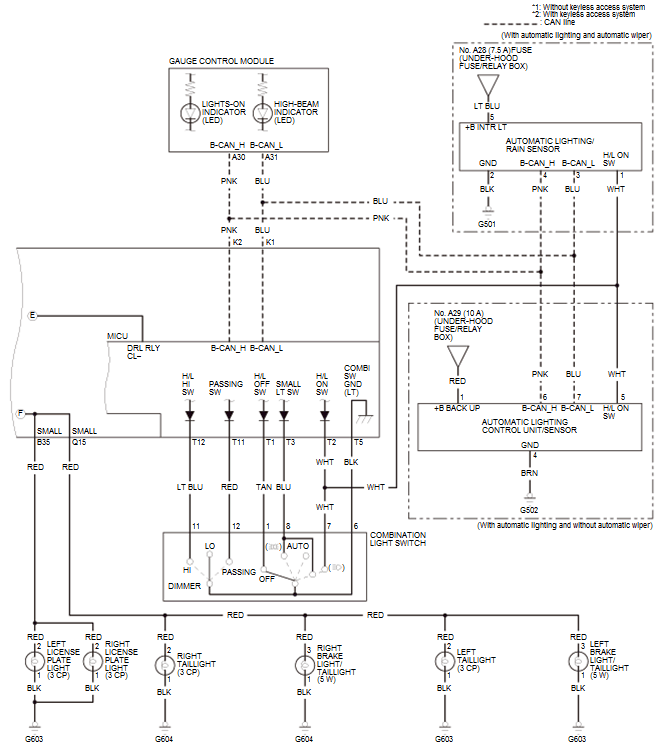

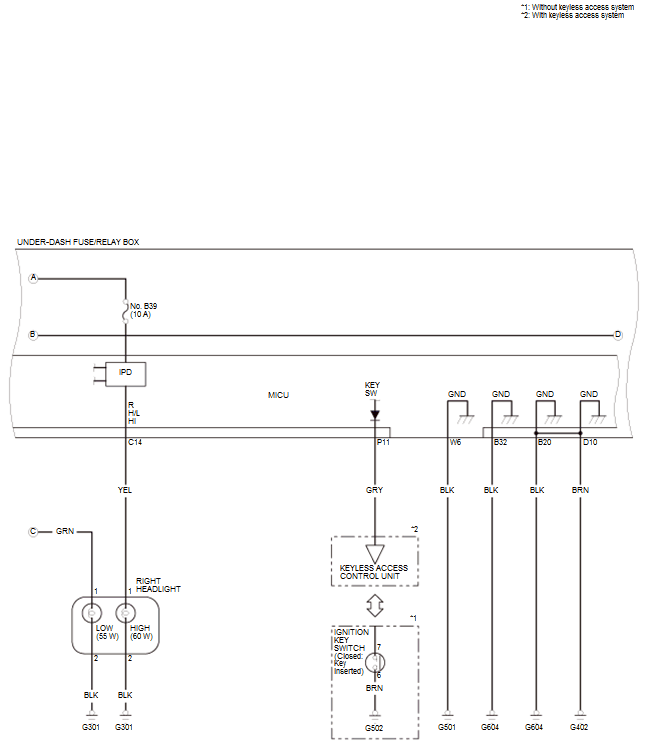

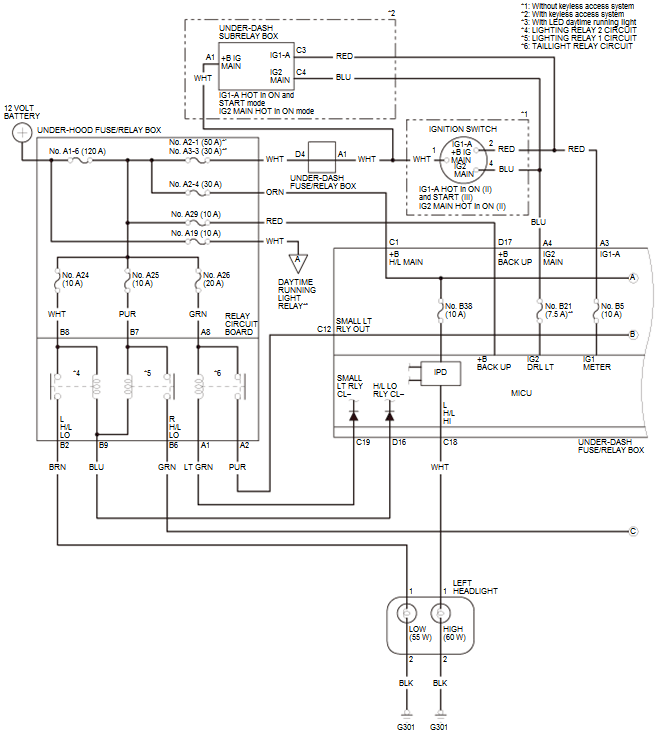

Headlights/Parking Lights/Side Marker Lights/Daytime Running Lights/Taillights/License Plate Lights

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

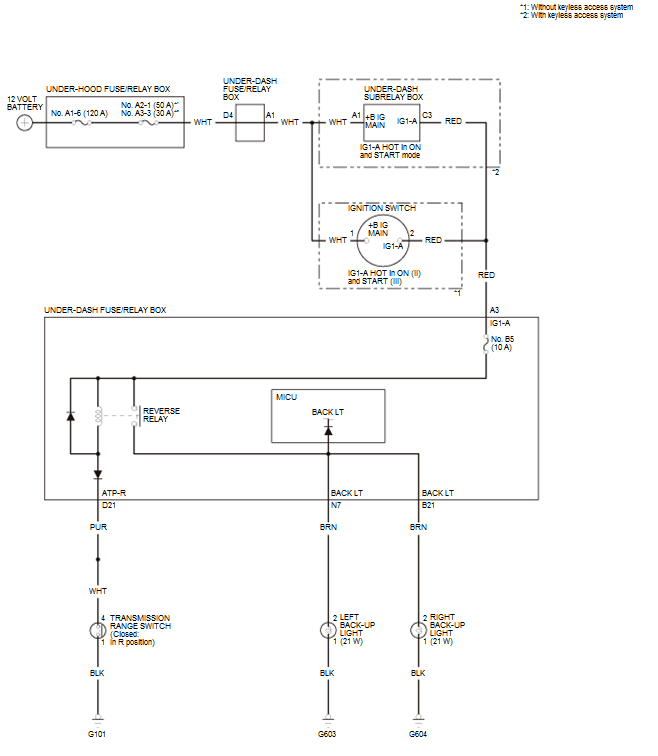

Back-Up Lights

Courtesy of HONDA, U.S.A., INC.

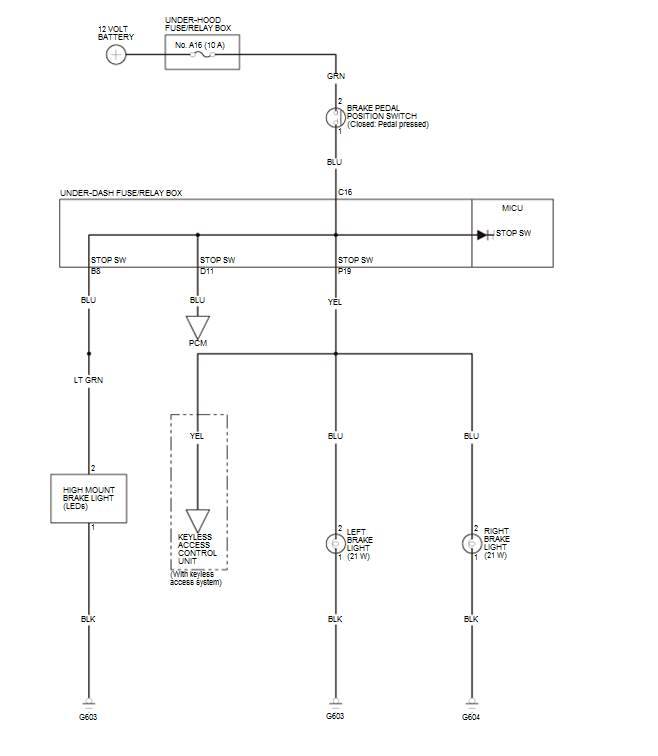

Brake Lights - Without ACC

Courtesy of HONDA, U.S.A., INC.

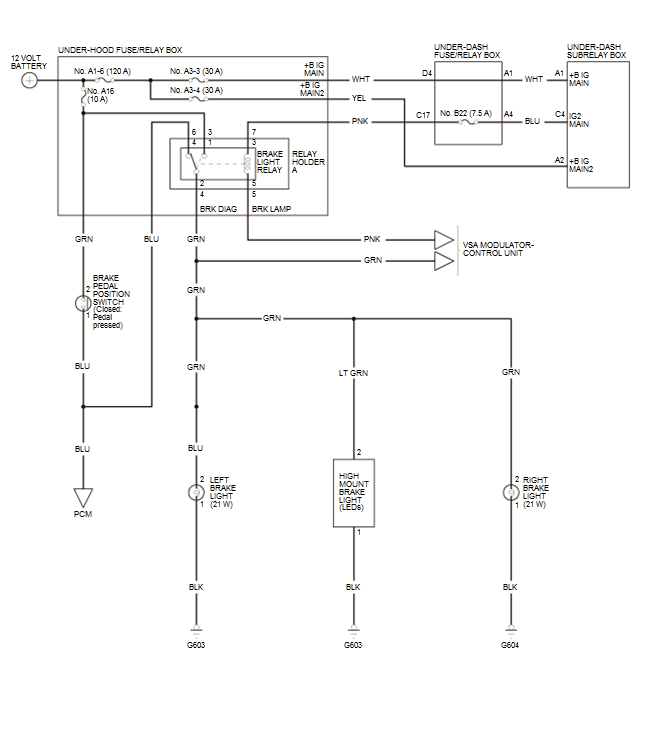

Brake Lights - With ACC

Courtesy of HONDA, U.S.A., INC.

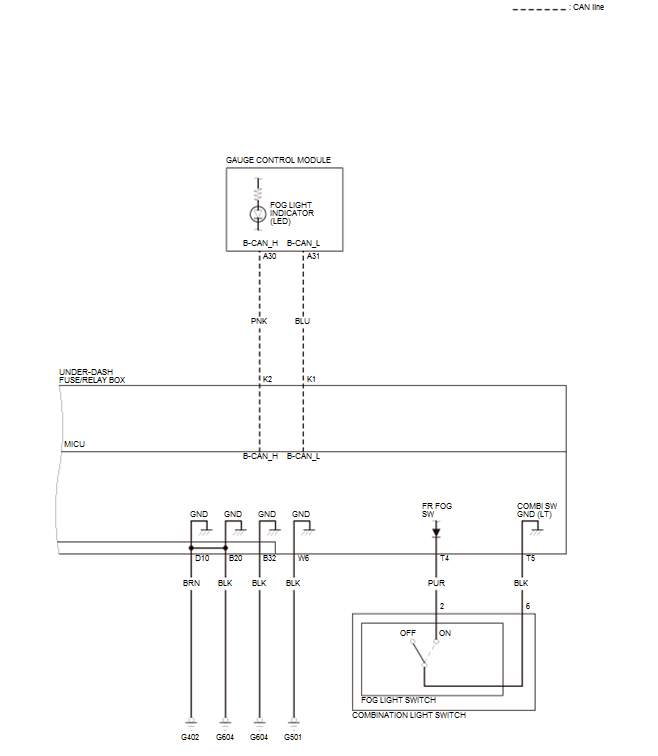

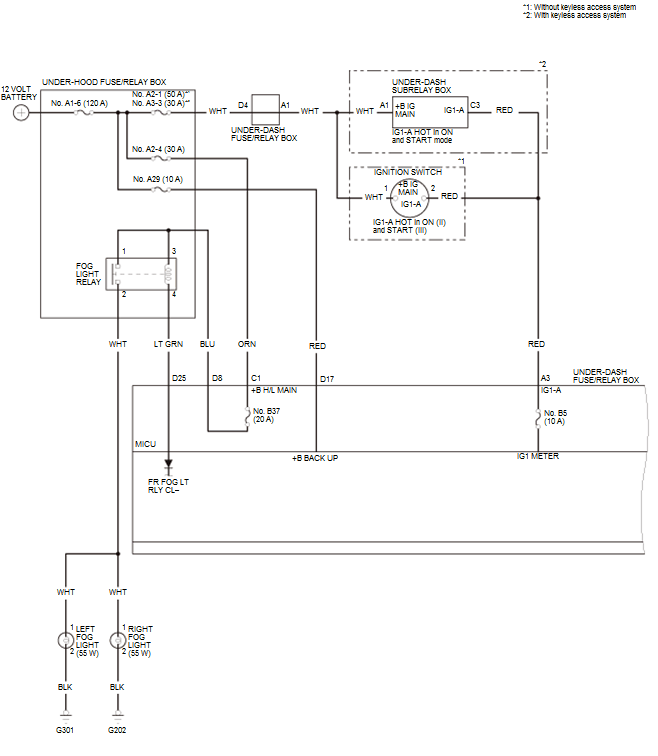

Fog Lights

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.
