Interior Lighting - Testing & Troubleshooting
>>
Circuit Diagram
>>

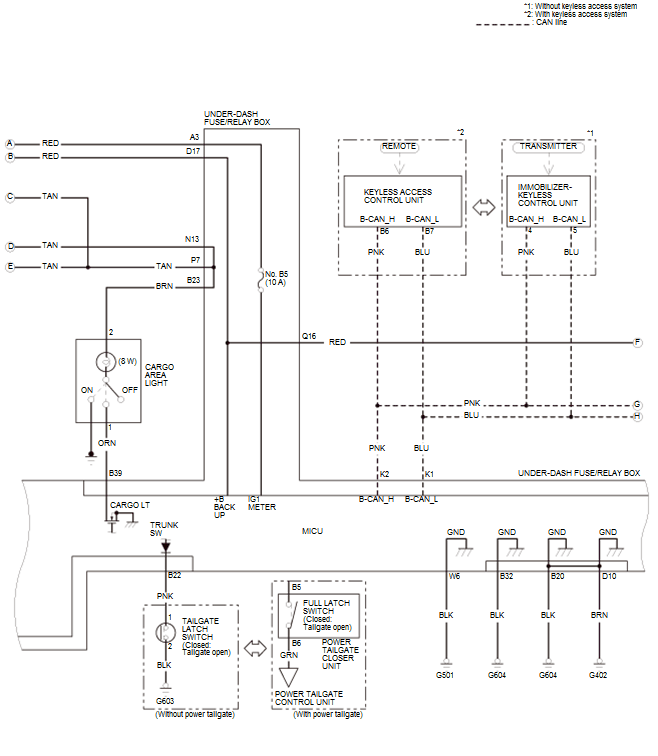

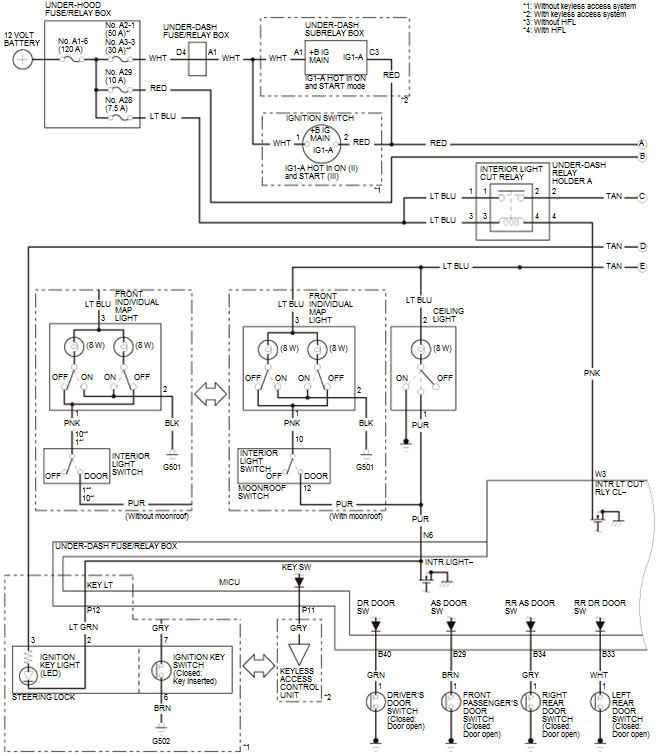

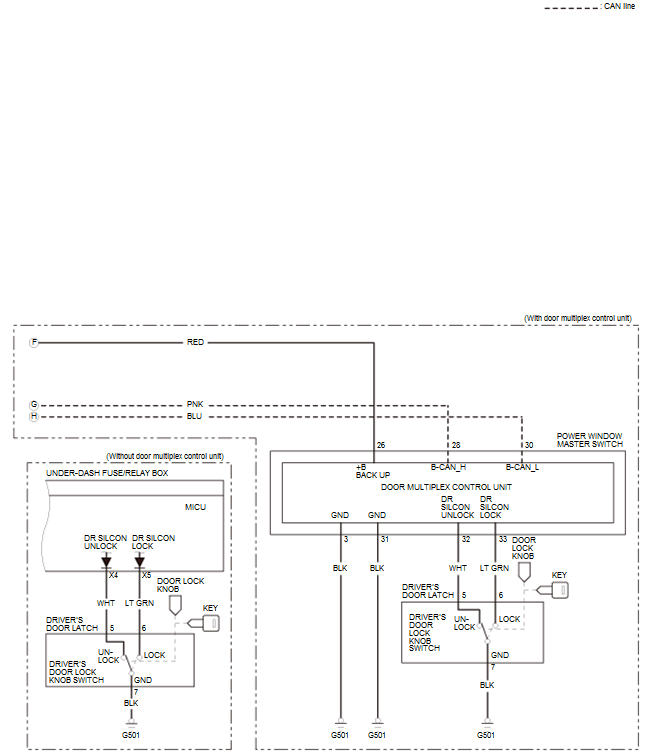

Entry Lights Control System Circuit Diagram
Entry Lights Control System Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
