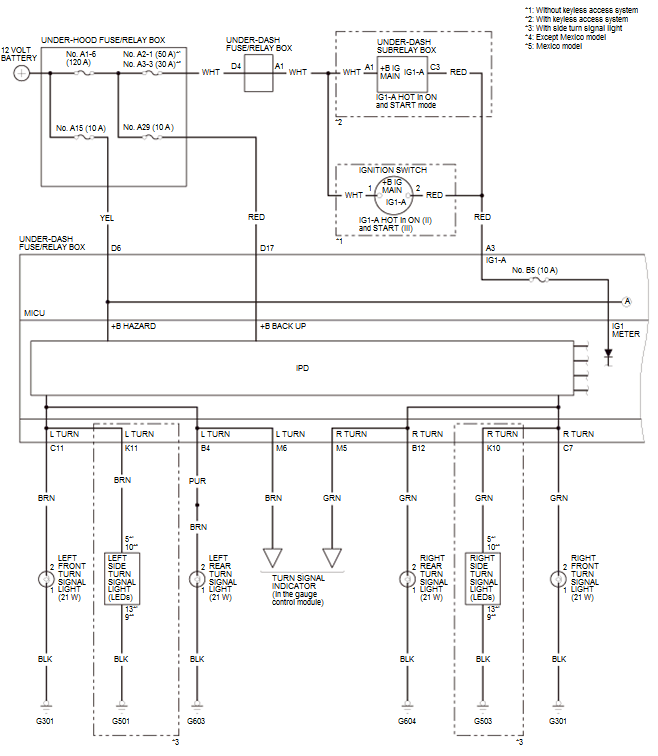

Turn Signal/Hazard Warning Lights Circuit Diagram

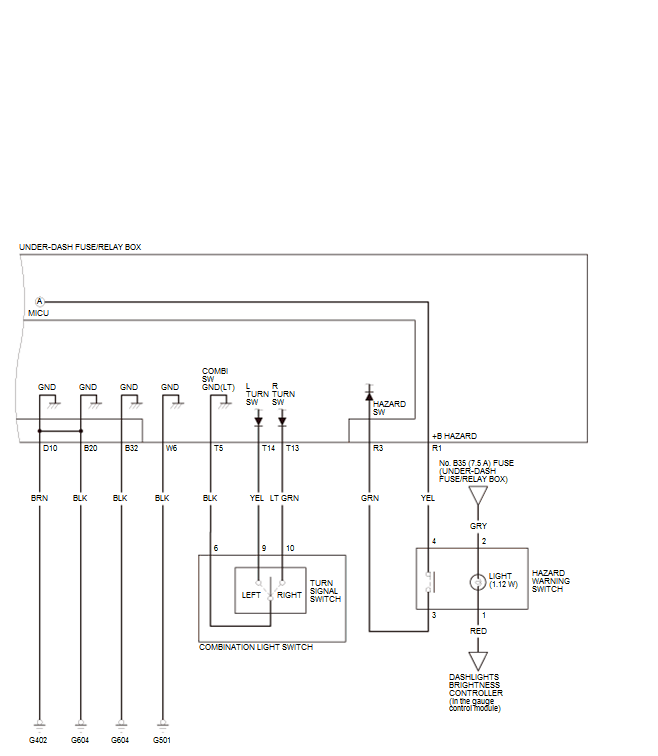

Turn Signal/Hazard Warning Lights Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
