Mil Comes On With DTC P0335 And/Or P0339 (16-011)
WARNING: This page is about the CR-V EX, Eng CD K24V1, which is a different variant/trim than selected.
Publication date: 2016-03-18Reference number: 16-011
MIL COMES ON WITH DTC P0335 AND/OR P0339
TECHNICAL SERVICE BULLETIN
Reference Number(s): 16-011, Date of Issue:
March 18, 2016
| HONDA: | 2013-2016 Accord; 2015-2016 CR-V |
AFFECTED VEHICLES
AFFECTED VEHICLES
| Year | Model | Trim | VIN Range |
|---|---|---|---|
| 2013-15 | Accord | All L4 except Hybrid | ALL |
| 2016 | Accord | 2dr L4 | 1HGCT1...GA000001 thru 1HGCT1...GA005984 |
| 2016 | Accord | 4dr L4 | 1HGCR2...GA000001 thru 1HGCR2...GA100769 |
| 2015 | CR-V | All | ALL |
| 2016 | CR-V | 2WD | 2HKRM3...GH000001 thru 2HKRM3...GH515239 |
| 2016 | CR-V | 2WD | 3CZRM3...GG000001 thru CZRM3...GG701576 |
| 2016 | CR-V | 2WD | 5J6RM3...GL000001 thru 5J6RM3...GL005557 |
| 2016 | CR-V | AWD | 5J6RM4...GL000001 thru 5J6RM4...GL028294 |
| 2016 | CR-V | AWD | 2HKRM4...GH000001 thru 2HKRM4...GH621578 |
SYMPTOM
The MIL is on with DTC P0335 (CKP sensor no signal) and or P0339 (CKP sensor circuit intermittent interruption).
POSSIBLE CAUSES
There is corrosion between the engine wire harness and the CKP sensor connector.
CORRECTIVE ACTION
Replace the engine wire harness and the CKP sensor.
PARTS INFORMATION
PARTS INFORMATION
| Part Name | Part Number | Quantity |
|---|---|---|
| Crank Sensor | 37500-R60-U01 | 1 |
| O-Ring | 91333-PNC-006 | 1 |
| Intake Manifold Gasket A | 17115-5A2-A01 | 4 |
| Engine Wire Harness (CR-V) | 32110-5LA-405 | 1 |
| Engine Wire Harness (2013 Accord 2.4L M/T) | 32110-5A2-305 | 1 |
| Engine Wire Harness (2013 Accord 2.4L CVT) | 32110-5A2-405 | 1 |
| Engine Wire Harness (2014-16 Accord 2.4L M/T) | 32110-5A2-306 | 1 |
| Engine Wire Harness (2014-16 Accord 2.4L CVT) | 32110-5A2-406 | 1 |
WARRANTY CLAIM INFORMATION
The normal warranty applies.
WARRANTY CLAIM INFORMATION
| Operation Number | Description | Flat Rate Time | Defect Code | Symptom Code | Template ID | Failed Part Number |
|---|---|---|---|---|---|---|
| 7371BT | Replace the engine harness and the CKP sensor (2015-16 CR-V). | 3.2 hrs | 00801 | 03203 | 16-011A | 32110-5LA-405 |
| 7371BT | Replace the engine harness and the CKP sensor (2013 Accord 2.4L M/T) | 2.1 hrs | 16-011B | 32110-5A2-405 | ||
| 7371BT | Replace the engine harness and the CKP sensor (2013 Accord 2.4L CVT). | 2.1 hrs | 16-011C | |||
| 7371BT | Replace the engine harness and the CKP sensor (2014-16 Accord 2.4L M/T). | 2.1 hrs | 16-011D | |||
| 7371BT | Replace the engine harness and the CKP sensor (2014-16 Accord 2.4L CVT) | 2.1 hrs | 16-011E |
Skill Level: Repair Technician
REPAIR PROCEDURE
The following service information procedures have been used in full or in part within this service bulletin.
For more detail on these procedures and torque specifications, refer to the service information.
- Remove the air intake tube.
- Remove the air intake box.
- Remove the intake manifold.
- Remove the battery.
- Remove the battery base.

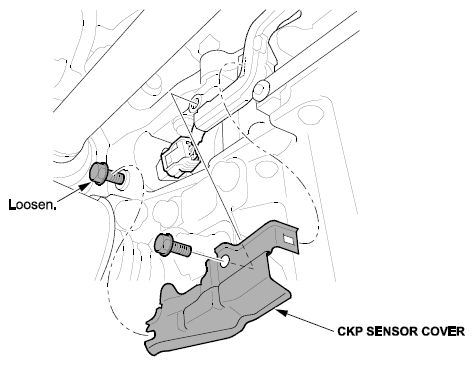

- Loosen the bolt, then remove the second bolt and the CKP sensor cover.

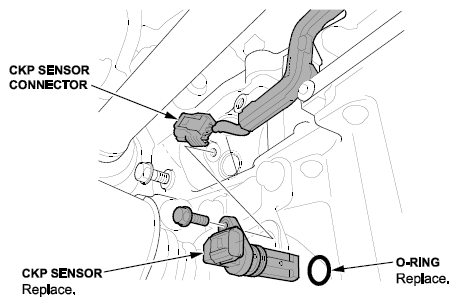

- Disconnect the CKP sensor connector.
- Remove the CKP sensor.
- Replace the engine wire harness with the new harness. To replace the engine wire harness remove the following components:
- Air intake tube
- Air intake box
- Intake manifold
- Battery
- Battery base

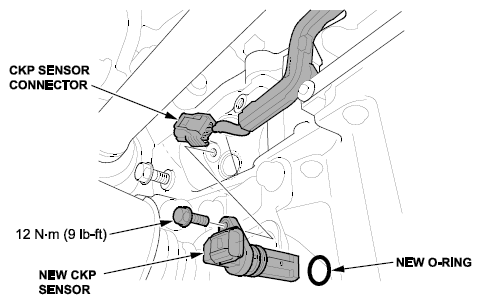

- Install the new CKP sensor with a new O-ring.
- Connect the CKP sensor connector.

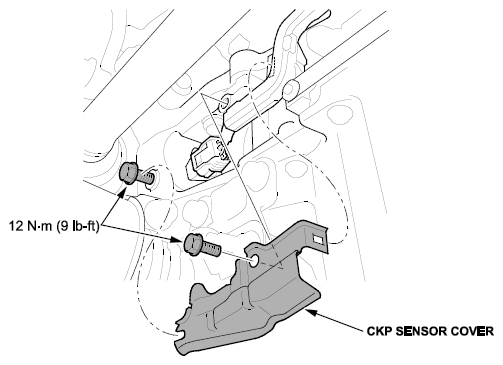

- Install the CKP sensor cover.
- Replace all removed parts in the reverse order of removal.
- Do the CKP pattern clear/CKP pattern learn procedure.
END
