WIRE HARNESS IDENTIFICATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): AJA11112 Version 2, Date of Issue: February 25, 2019

HONDA:

All Models

APPLIES TO

Models with EWD

INTRODUCTION

If you are having a hard time identifying which wiring harness you are working on, or you want to make sure you are ordering the correct one the first time, here are some tips and a cross reference guide that can help you.

Using the specific EWD for the vehicle you are working on, look for Component Locations .

For example, if you need to know which harness SRS unit connector B (57P) belongs to, you can find it by searching for the component or connector, or by selecting the component location.

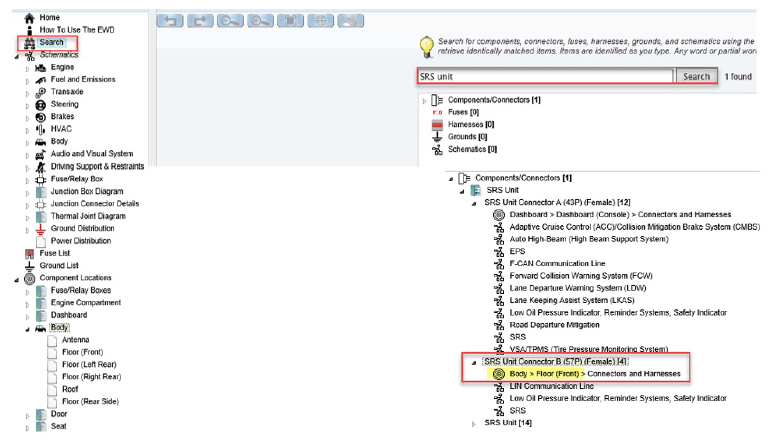

Component or Connector Search

Select Search in the left window pane, then enter the component and/or connector you are looking for.

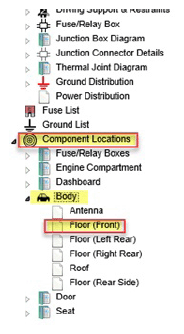

Component Location

In the Component Locations menu in the left window pane, select the component itself or the connector based on its location.

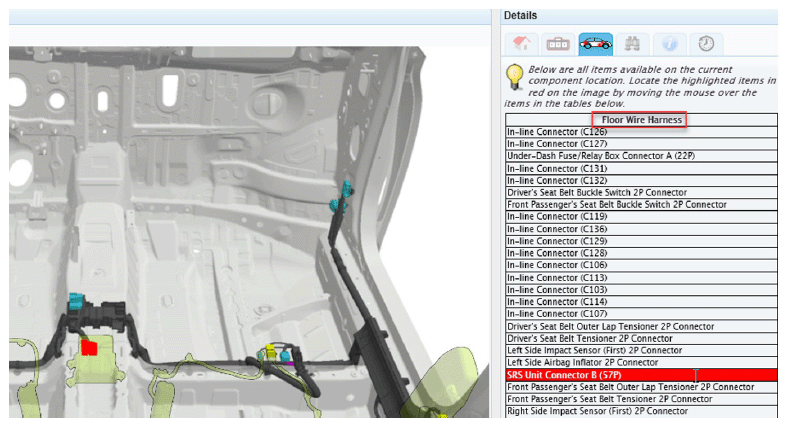

In either case, selecting the link will display the layout of the harness, connectors, and components, as well as a list of connectors and components in the right window pane.

After identifying that you are working with the Floor Wire Harness, you can use the following cross reference table to provide additional information to your parts department and correctly identify the harness you need. The description should be straightforward in this example, but you can double check by referencing the first five digits of the part number 32107.

NOTE: Although this is not a complete list of all harnesses, it includes the majority and the hardest to identify. Use the following table to help identify the harness in question in the parts catalog.

PARTS INFORMATION

SIS/EWD Description	Parts Catalog Description	Part number
A/C Wire Harness	WIRE HARNESS, AIR CONDITIONER	32157 or 80650
Cable Reel Sub-harness	SUB-WIRE, CABLE REEL	77901
Console Sub-harness (A)	SUB-WIRE, CONSOLE	32104
Console Sub-harness (Rear)	SUB-WIRE, CONSOLE PANEL	32105
Dashboard Wire Harness	WIRE HARNESS, INSTRUMENT; WIRE HARNESS INSTRUMENT; HARNESS, INSTRUMENT	32117
Driver's Door Wire Harness	WIRE HARNESS, DRIVER DOOR	32751
Engine (or Right) Compartment Wire Harness	WIRE HARNESS, ENGINE; WIRE HARNESS, CABIN; WIRE HARNESS, R. CABIN; HARNESS, R. CABIN	32100
Engine Compartment Wire Harness	WIRE HARNESS, ENGINE ROOM	32200
Engine Wire Harness	WIRE HARNESS, ENGINE	32110
Floor Wire Harness	WIRE HARNESS, FLOOR	32107
Front ACM Sub-harness	SUB-WIRE, FR. ACM SOLENOID	32101
Front Bumper Sub-harness	SUB-WIRE, FR. BUMPER	32121
Front Bumper Sub-harness	SUB-WIRE HARNESS, FR. BUMPER	32216
Front Console Sub-harness Front Console Wire Harness	WIRE SUB-HARNESS, AUDIO; SUB-WIRE, FR. CONSOLE	32118
Front End Wire Harness	WIRE HARNESS, FR. END	32130
Front Passenger's Door Wire Harness	WIRE HARNESS, PASSENGER DOOR	32752
Left Engine Compartment Wire Harness	WIRE HARNESS, L. CABIN	32120
Left Rear Door Wire Harness	WIRE HARNESS, L. RR. DOOR	32754
Moonroof/Roof Wire harness, Roof Sub-harness	WIRE ASSEMBLY, INTERIOR; WIRE, SUNROOF; WIRE, INTERIOR; HARNESS, INTERIOR; WIRE, INTERIOR LIGHT; SUB-WIRE, INTERIOR; HARNESS, SUNROOF; WIRE ASSEMBLY; SUB-WIRE; SUB-WIRE, SUNROOF MOTOR	32155
Moonroof/Roof Wire harness, Moonroof Sub-harness	WIRE (HARNESS), INTERIOR; WIRE HARNESS, SUNROOF; WIRE, SUNROOF; WIRE, INTERIOR; WIRE ASSEMBLY, INTERIOR; WIRE, TWEETER; WIRE ASSEMBLY; HARNESS, INTERIOR	32156
Rear ACM Sub-harness	SUB-WIRE, RR. ACM SOLENOID	32102
Rear Bumper Sub-harness	SUB-WIRE, REAR BUMPER/TRAILER	32113
Rear Bumper Sub-harness	WIRE HARNESS, RR. BUMPER	32165
Rear Subframe Sub-harness	WIRE HARNESS, RR. SUB-FRAME	32114
Rear Wire Harness	WIRE HARNESS, RR.	32108
Right Rear Door Wire Harness	WIRE HARNESS, R. RR. DOOR	32753
