Safety Recall: 2013-16 Cr-V Fuel Pump Module Set/Assembly Replacement (24-073)
Reference number: 24-073
SAFETY RECALL: 2013-16 CR-V FUEL PUMP MODULE SET/ASSEMBLY REPLACEMENT
SERVICE CAMPAIGN BULLETIN
| HONDA: | 2016-16 CR-V |
AFFECTED VEHICLES
| Year | Model | Trim Level | VIN Range |
|---|---|---|---|
| 2013-16 | CR-V | ALL | Check the iN vin status for eligibility |
REVISION SUMMARY
Information on the first two pages of this bulletin has been extensively revised. American Honda recommends reviewing this information in its entirety.
BACKGROUND
A certain number of 2013-16 CR-V units may have received a fuel pump assembly service part with defective impellers. Due to swelling of the fuel pump motor impeller, the fuel pump may seize and stop working. A defective impeller may cause the fuel pump to become inoperative, which could prevent an engine from functioning as intended. This limitation may cause a loss of motive power or a stall while driving increasing the risk of a crash or injury, creating a safety hazard. If this bulletin appears during an iN VIN status inquiry, the vehicle is subject to a safety recall. Any affected vehicles in your dealer inventory are on STOP SALE until further notice. Refrain from calling Tech Line for updates.
CUSTOMER NOTIFICATION
Owners of affected vehicles will be sent a notification of this campaign. Do an iN VIN status inquiry to make sure the vehicle is shown as eligible. Some vehicles affected by this campaign may be in your new or used vehicle inventory. Failure to repair a vehicle subject to a recall or campaign may subject your dealership to claims or lawsuits from the customer or anyone else harmed as a result of such failure. To see if a vehicle in inventory is affected by this safety recall, do a VIN status inquiry before selling it.
CORRECTIVE ACTION
Replace the fuel pump module set.
PARTS INFORMATION
| Part Name | Part Number | Quantity |
|---|---|---|
| Fuel Pump Module Set (2013-14 models) | 17045-T0A-020 | 1 |
| Fuel Pump Module Set (2015-16 models) | 17045-T1W-A01 | 1 |
| Fuel Feed Quick-Connect Retainer | 17711-SDC-L01 | 1 |
For dealers experiencing a strong fuel smell from storing a fuel pump motor replaced under this service bulletin, the fuel pump motor may be disposed of immediately in accordance with local regulations. This only applies to the fuel pump motor replaced under this service bulletin. The published retention policy remains in effect for all other parts.
If you have any questions about this exception or other parts retention issues, contact the WPI Administrative Office at 937-642-2737.
TOOL INFORMATION
| Tool Name | Part Number | Quantity |
|---|---|---|
| Fuel Pump Locknut Wrench (2013-14 CR-V) | 07AAA-T0A0100 | 1 |
| Fuel Pump Locknut Wrench (2013-16 CR-V) | 070AA-T0AA100 | 1 |
WARRANTY CLAIM INFORMATION
| Operation Number | Description | Flat Rate Time | Defect Code | Symptom Code | Template ID | Failed Part Number |
|---|---|---|---|---|---|---|
| 3101EH | 2013-14: Replace the fuel pump module set. | 0.3 hr | 6FE00 | EIL00 | A24073A | 17045-T0A-020 |
| 3101EH | 2015-16: Replace the fuel pump module set. | 0.3 hr | 6FE00 | EIL00 | A24073B | 17045-T1W-A01 |
Skill Level: Repair Technician
REPAIR PROCEDURE
- Relieve the fuel pressure.
- 2013-2014 Steps 1-5, Fuel Pressure Relieving Procedure ,
- 2015-2016 Steps 1-2, Fuel Pressure Relieving Procedure ,
- Do the battery terminal disconnection procedure.
- 2013-2014 Battery Terminal Disconnection and Reconnection ,
- 2015-2016 Battery Terminal Disconnection and Reconnection ,

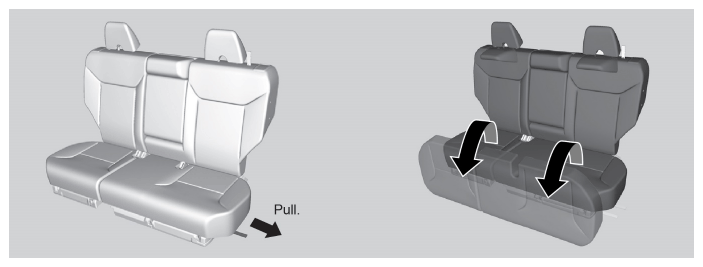

- Pull the release strap, then flip the rear seat cushion forward to gain access to the fuel tank unit access panel.
- Remove the fuel unit and replace it with the new one.
- 2013-2014 Removal steps 5-7 and Installation steps 1-6, Fuel Tank Unit Removal and Installation ,
- 2015-2016 Removal steps 2-5 and Installation steps 1-5, Fuel Tank Unit Removal and Installation ,
- Install all remaining parts in the reverse order of removal.
- California residents only:

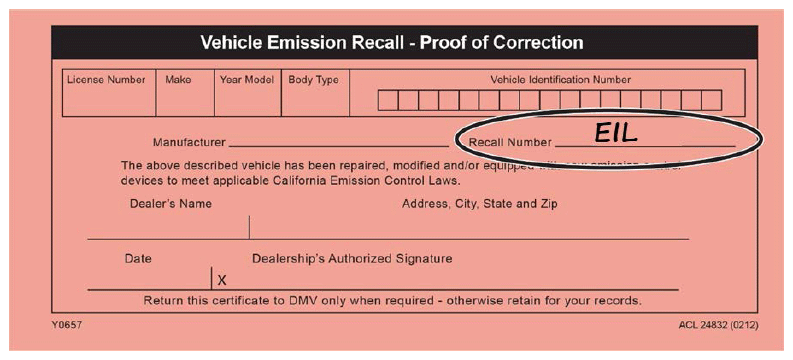

Fill out a Vehicle Emissions Recall - Proof of Correction certificate and use EIL
as the recall number. Have the service advisor give the certificate to your customer and advise him or her to keep it as proof that the recall was completed. Your customer will need to submit this certificate to the DMV only if the DMV requests it. If you need more certificates, use reorder number Y0657.
