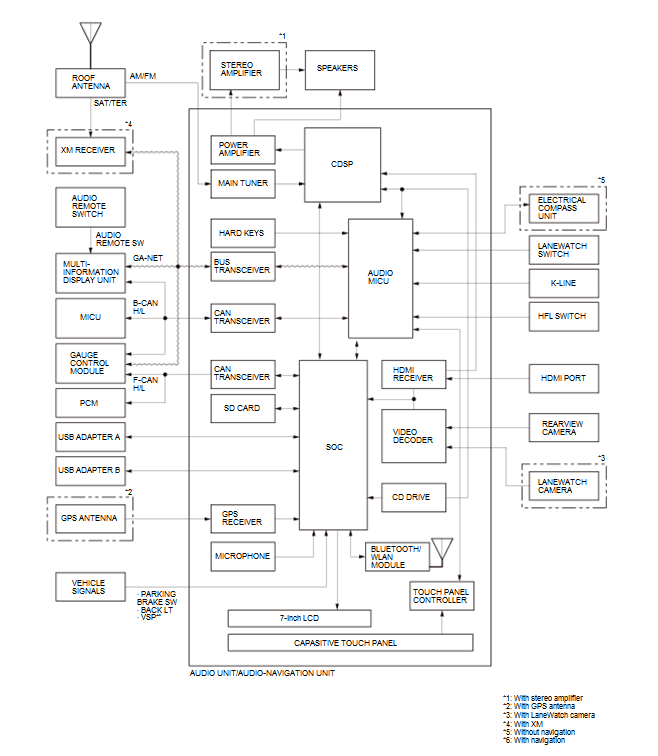

Audio System Description - System Diagram(With Display Audio)

NOTE:  Refer to the navigation system section for audio-navigation unit system diagram.

Courtesy of HONDA, U.S.A., INC.

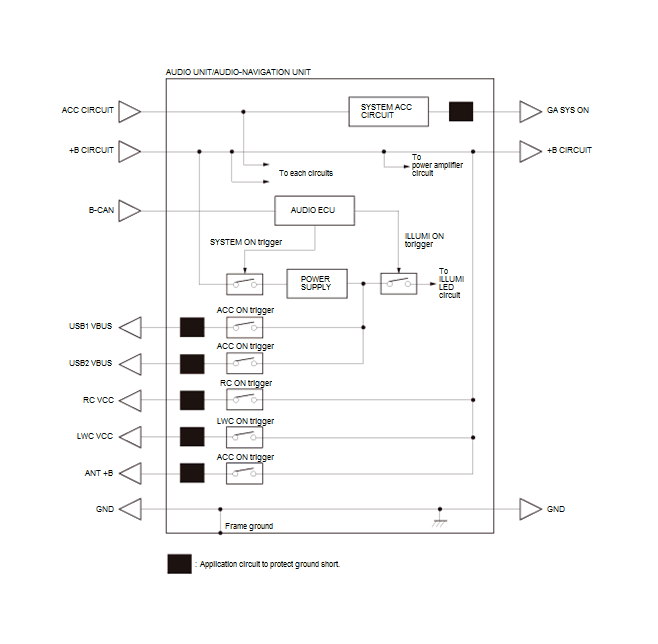

Power Supply Diagram

Courtesy of HONDA, U.S.A., INC.
