Rear Damper/Spring Disassembly, Reassembly, and Inspection
>>
Exploded View
Exploded View
1. Damper/Spring - Exploded View
Exploded View

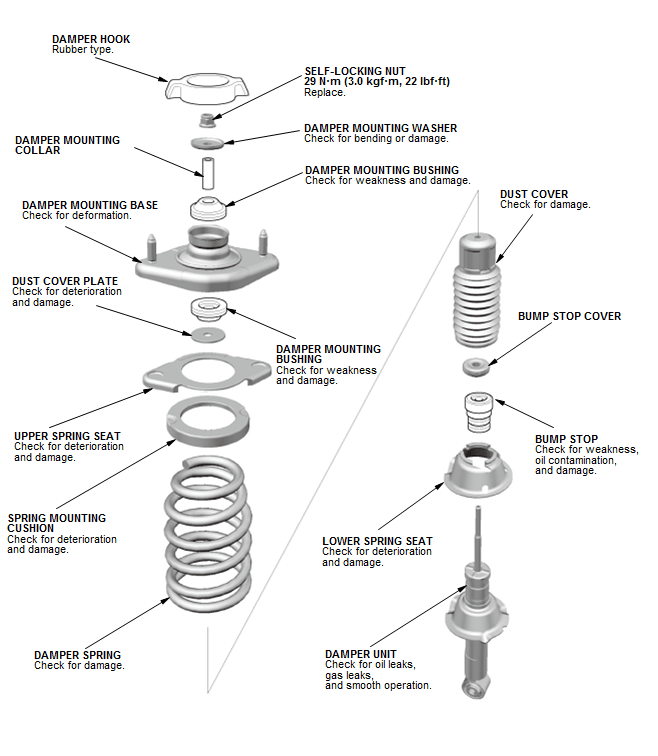

Fig 1: Rear Damper/Spring - Exploded View With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
