Inspection Procedure

3. Wheel Bearing End Play - Inspect

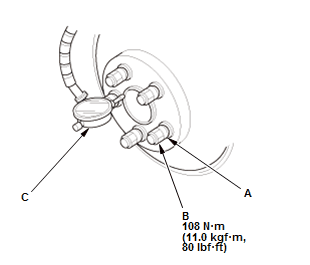

Fig 1: Wheel Nuts With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

1. Install suitable flat washers (A)

2. Install the wheel nuts (B)

3. Tighten the nuts to the specified torque to hold the brake disc securely against the hub

4. Attach the dial gauge (C)

5. Place the dial gauge against the hub flange or the hub cap

6. Measure the bearing end play while moving the brake disc inward and outward.

Wheel bearing end play:
	Front/Rear:	0-0.05 mm (0-0.0020 in)

7. If the bearing end play measurement is more than the standard, replace the wheel bearing or the hub bearing unit .
