EPS Control Unit Removal & Installation: Removal

1. 12 Volt Battery Terminal - Disconnect
2. Driver's Dashboard Panel - Remove
3. Driver's Dashboard Undercover - Remove - Refer to: Passenger's Dashboard Undercover Removal and Installation Driver's Dashboard Undercover Removal and Installation
4. Driver's Dashboard Lower Cover - Remove
5. EPS Control Unit - Remove

Courtesy of HONDA, U.S.A., INC.

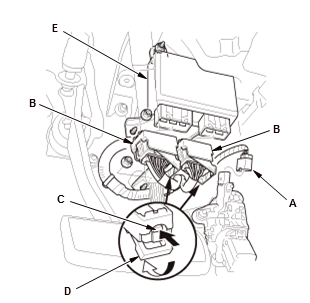

1. Disconnect the connector (A)

2. Disconnect the connectors (B) by pushing the lock (C), and pulling down the lever (D)

3. Remove the EPS control unit (E).
