Removal & Installation

Courtesy of HONDA, U.S.A., INC.

1. Adjust the steering column to full tilt down position and the full telescopic pull position

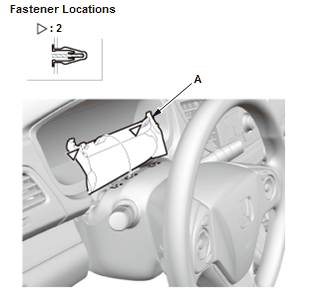

2. Pry out the dashboard meter visor blind cover (A), then tuck up the dashboard meter visor blind cover.

Courtesy of HONDA, U.S.A., INC.

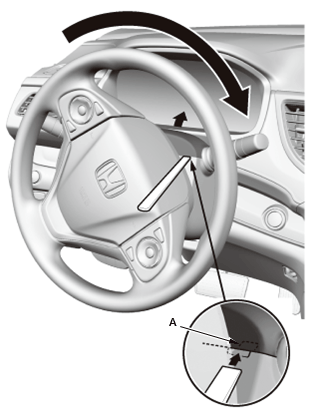

3. Turn the steering wheel 90° clockwise, then release the hook (A).

Courtesy of HONDA, U.S.A., INC.

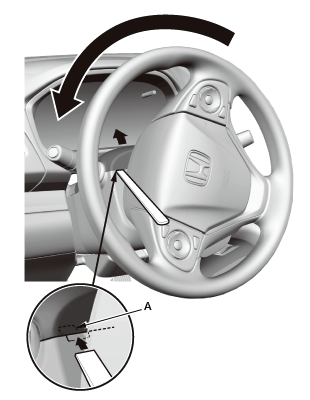

4. Turn the steering wheel 180° counterclockwise, then release the hook (A).

Courtesy of HONDA, U.S.A., INC.

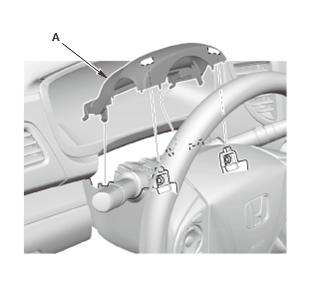

5. Remove the upper column cover (A).

Courtesy of HONDA, U.S.A., INC.

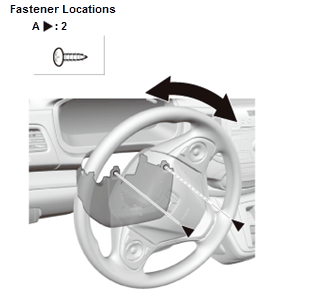

1. Turn the steering wheel to access the mounting screws (A), then remove the screws from front side of the column cover.

Courtesy of HONDA, U.S.A., INC.

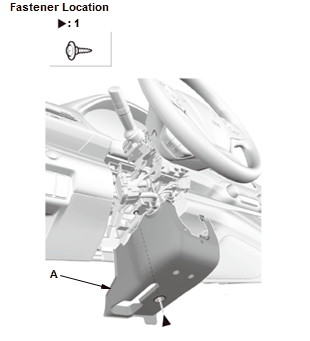

2. Remove the lower column cover (A).

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

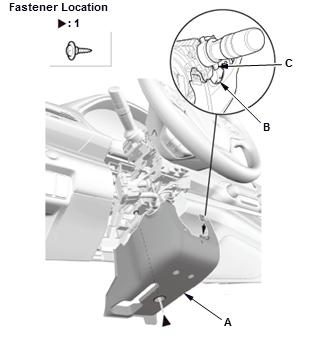

NOTE:  Make sure push in on the lower column cover just above ignition switch opening (B) to engage the column cover with the locking tab (C).
