Steering Gearbox Mount Cushion Replacement: Removal

NOTE:  Do not allow dust, dirt, or other foreign materials to enter the steering gearbox.

1. 1. Steering Gearbox - Remove
2. 2. Steering Gearbox Mount Cushion - Remove

   Courtesy of HONDA, U.S.A., INC.

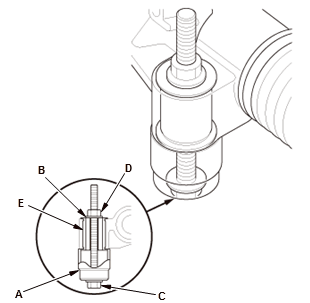

   1. Position a 41 mm socket (A) on the flange part of the gearbox housing with a washer (B), a 10 x 105 mm flange bolt (C), and a 10 mm nut (D) as shown

   2. Hold the flange bolt with a wrench, and tighten the nut with a wrench. Remove the gearbox mount cushion (E).
