Removal & Installation

Left Side

• 1. Left Rear Seat Belt Buckle - Remove

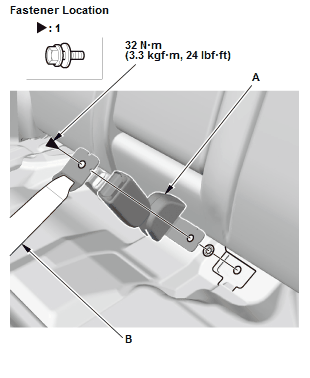

  Fig 1: Left Rear Seat Belt Buckle With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Tip up the rear seat cushion

  2. Remove the rear seat belt buckle (A) and the detachable anchor (B).

• 2. All Removed Parts - Install the parts in the reverse order of removal.

  Right Side

• 1. Right Rear Seat Belt Buckle - Remove

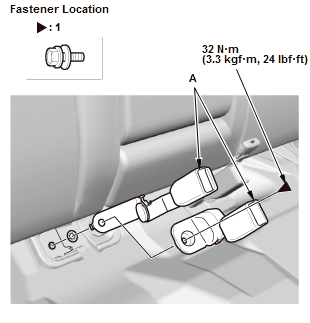

  Fig 2: Right Rear Seat Belt Buckle With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Tip up the rear seat cushion

  2. Remove the rear seat belt buckles (A).

• 2. All Removed Parts - Install the parts in the reverse order of removal.
