Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Headliner - Remove
• 2. Rear Center Seat Belt - Remove

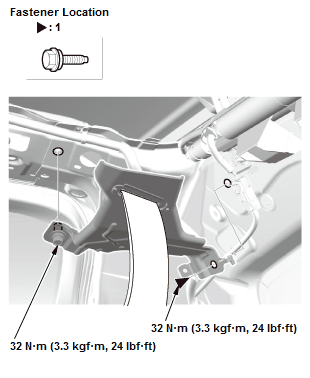

  Fig 1: Rear Center Seat Belt With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.
• 3. All Removed Parts - Install the parts in the reverse order of removal.
