Removal & Installation

1. Quarter Pillar Trim - Remove - Refer to: Interior Trim Removal and Installation - Pillar Areas Interior Trim Removal and Installation - Tailgate Areas Interior Trim Removal and Installation - Cargo Areas Interior Trim Removal and Installation - Rear Side Area Interior Trim Removal and Installation - Door Areas
2. Rear Seat Belt Upper Anchor Bolt - Remove

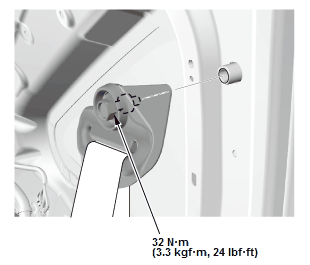

Fig 1: Rear Seat Belt Upper Anchor Bolt With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
3. Rear Seat Belt Assembly - Remove

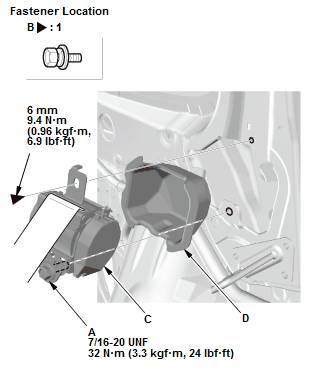

Fig 2: Rear Seat Belt Assembly With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Remove the bolts (A, B)

2. Remove the rear seat belt assembly (C)

3. If necessary, remove the retractor protector (D).
4. All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

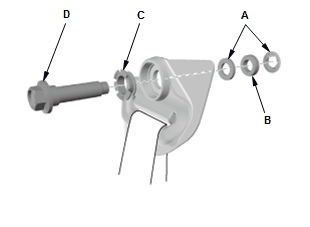

NOTE: Assemble the washers (A), the collar (B), and the bushing (C) on the upper anchor bolt (D) as shown.
