Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

NOTE:

• When working on electronic components, make sure the work area is clean and dust free.
• Make sure your hands are clean and free of oils and grease.
• If the audio-navigation unit (audio unit) is replaced, install the original SD card into the new audio-navigation unit (audio unit).
• The audio-navigation unit (audio unit) and the SD card module cannot be substituted separately for testing purposes. If you need to substitute a known-good audio-navigation unit (audio unit) for testing, substitute a known-good unit and SD card module at a time.

• 1. Audio Unit Assembly (Without Navigation) - Remove - Refer to: Audio Unit Removal and Installation(With Display Audio) Audio Unit Removal and Installation(With Normal Audio)
• 2. Audio-Navigation Unit Assembly (With Navigation) - Remove
• 3. SD Card - Remove

  Courtesy of HONDA, U.S.A., INC.

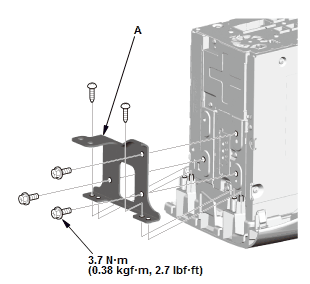

  1. Remove the left side bracket (A).

  Courtesy of HONDA, U.S.A., INC.

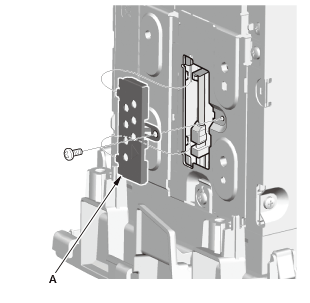

  2. Remove the SD cover (A).

  Courtesy of HONDA, U.S.A., INC.

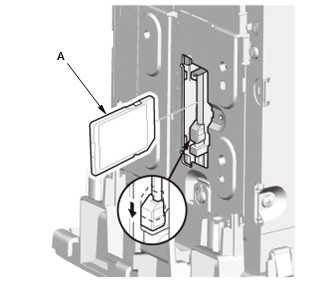

  3. Remove the SD card (A).

• 4. All Removed Parts - Install the SD card in the reverse order of removal.
