Removal & Installation

Horn (Low)

• 1. Horn (Low) and Bracket Assembly- Remove

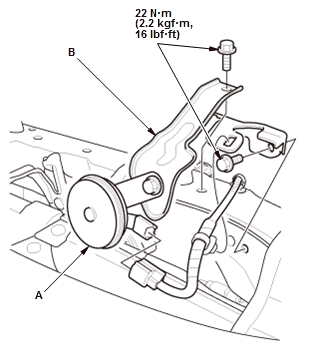

  Fig 1: Horn (Low) & Bracket Assembly With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the horn (A) and the bracket (B) as an assembly

  2. Disconnect the connector, and detach the harness clip.

• 2. Horn (Low) - Remove

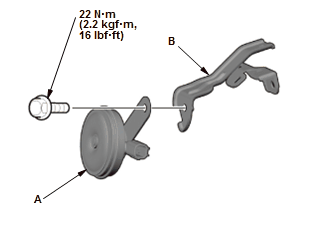

  Fig 2: Horn (Low) & Bracket With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the horn (low) (A) from the bracket (B).

• 3. All Removed Parts - Install the parts in the reverse order of removal.

  Horn (High)

• 1. Splash Shield - Remove

  1. Detach the splash shield as needed.

• 2. Horn (High) - Remove

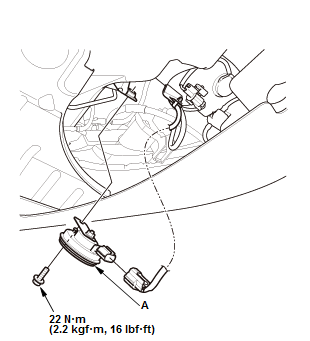

  Fig 3: Horn (High) With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector

  2. Remove the horn (high) (A).

• 3. All Removed Parts - Install the parts in the reverse order of removal.
