Test Procedure

1. Driver's Dashboard Lower Cover - Remove
2. Driver's Power Tailgate Switch - Test

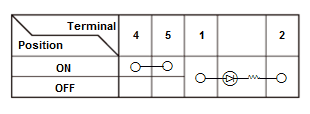

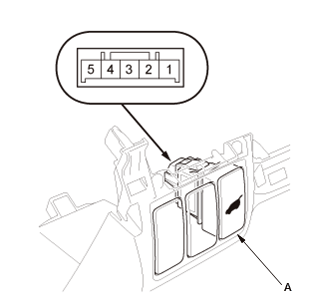

5P Connector Type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

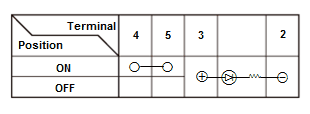

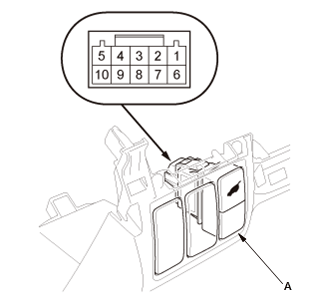

10P Connector Type

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

1. Check the driver's power tailgate switch (A) according to the table.

NOTE:
- Location of the power tailgate switch is changed depending on the model.
- When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
- Make sure the correct test lead (+ or -) is placed on the terminal.
- When checking for continuity across the diode, use the diode setting.
- Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).
2. If the continuity is still not as specified, replace the driver's power tailgate switch (A) .
3. All Removed Parts - Install - Install the parts in the reverse order of removal.
