Front Door Outer Molding Replacement: Replacement

1. Front Door Panel - Remove
2. Power Mirror - Remove
3. Front Door Outer Molding - Remove

Courtesy of HONDA, U.S.A., INC.

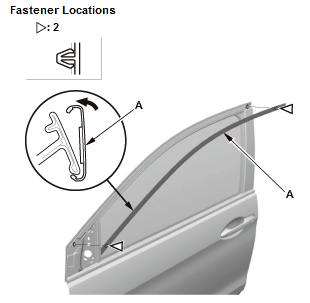

1. Detach the clips (A), then pull out the upper edge of the front door outer molding (B) from the edge of the sash. If necessary, cut the double-sided adhesive tape (C) with a utility knife.
4. Front Door Outer Molding - Install

Courtesy of HONDA, U.S.A., INC.

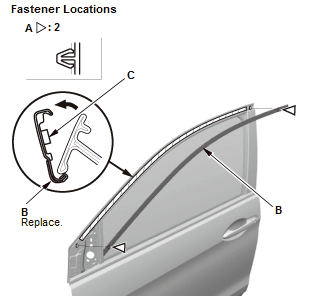

1. Scrape off the remaining double-sided adhesive tape from the sash, then clean the surface with a sponge dampened in isopropyl alcohol. After cleaning, keep oil, grease, and water from getting on the surface

2. Install a new front door outer molding (A).
5. All Removed Parts - Install the parts in the reverse order of removal.
