Removal & Installation

1. Front Door Weatherstrip - Remove

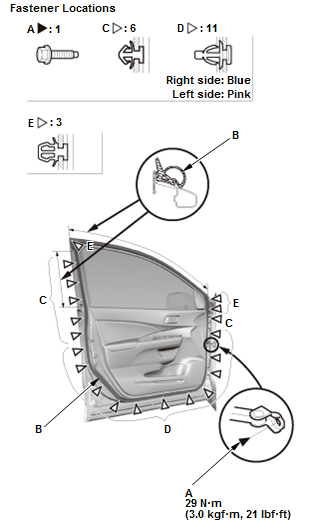

Fig 1: Front Door Weatherstrip Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Remove the door checker mounting bolt (A) at the A-pillar

2. Remove the door weatherstrip (B).
2. All Removed Parts - Install the parts in the reverse order of removal.
3. Water Leaks - Check
