Center Console Disassembly and Reassembly: Disassembly

2. Center Console - Disassembly

Courtesy of HONDA, U.S.A., INC.

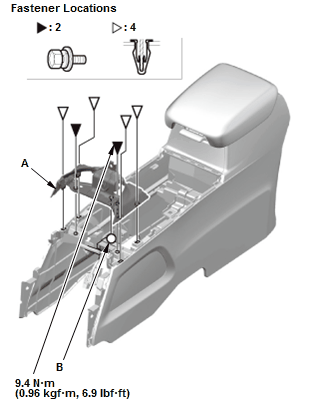

1. Pull up the upper front console panel assembly (A), then detach the connector clip (B)

2. Remove the upper front console panel assembly.

Courtesy of HONDA, U.S.A., INC.

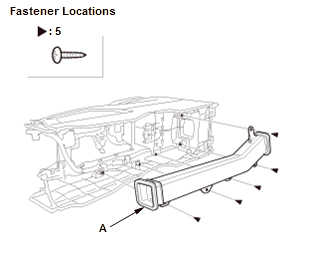

3. Remove the joint duct (A).

Courtesy of HONDA, U.S.A., INC.

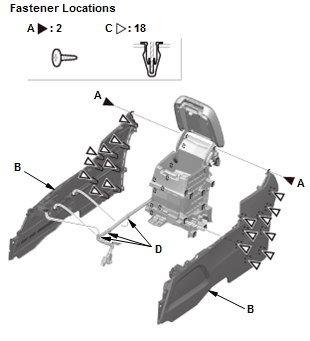

4. Remove the screws (A), then pull out the console side panels (B) to detach the clips (C)

5. Detach the harness clips (D), then remove the console side panels.

Courtesy of HONDA, U.S.A., INC.

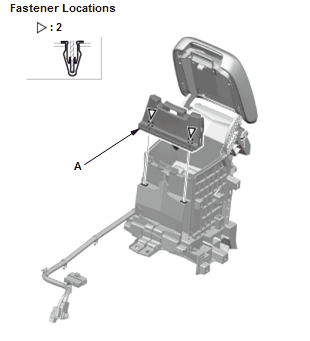

6. Remove the console center trim (A).

Courtesy of HONDA, U.S.A., INC.

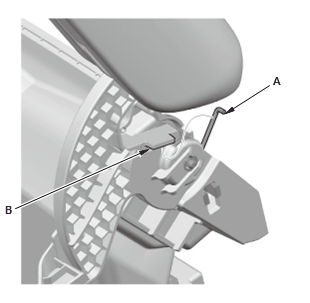

7. Release the damper spring end (A) from the spring stopper (B).NOTE: Repeat this procedure on the opposite side.

Courtesy of HONDA, U.S.A., INC.

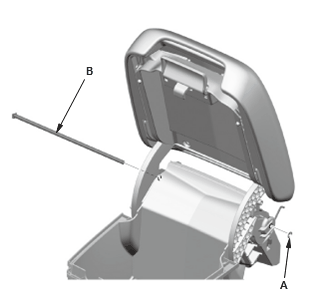

8. Remove the E-ring (A), then remove the hinge shaft (B).

Courtesy of HONDA, U.S.A., INC.

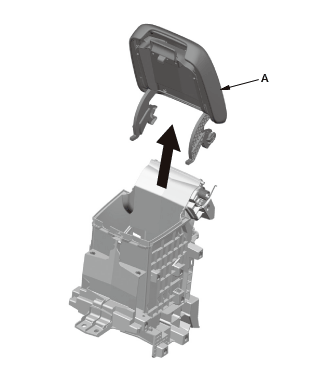

9. Remove the center console armrest assembly (A).
