Removal & Installation

NOTE: If you are replacing the XM receiver, register the new XM receiver I.D. number with XM Radio by calling 800- 852-9696.

1. Kick Panel - Passenger's Side - Remove - Refer to: Interior Trim Removal and Installation - Pillar Areas Interior Trim Removal and Installation - Tailgate Areas Interior Trim Removal and Installation - Cargo Areas Interior Trim Removal and Installation - Rear Side Area Interior Trim Removal and Installation - Door Areas

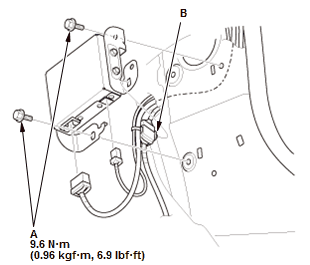

2. XM Receiver - Remove

Courtesy of HONDA, U.S.A., INC.

1. Remove the bolts (A)

2. Remove the connector clip (B)

3. Disconnect the connectors.
3. All Removed Parts - Install the XM receiver in the reverse order of removal.
