Test Procedure

1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Pillar Areas Interior Trim Removal and Installation - Tailgate Areas Interior Trim Removal and Installation - Cargo Areas Interior Trim Removal and Installation - Rear Side Area Interior Trim Removal and Installation - Door Areas
2. Power Tailgate Pinch Sensor - Test

Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector.

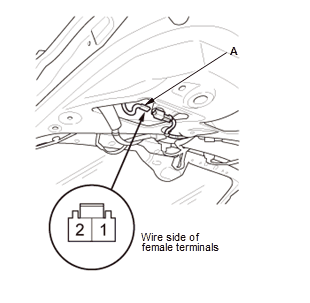

2. Measure the resistance between the pinch sensor connector terminals No. 1 and No. 2. The resistance should vary from about 1 kΩ to about 100 Ω when the sensor is pressed.

3. If the resistance is not as specified, replace the pinch sensor (A) .
3. All Removed Parts - Install - Install the parts in the reverse order of removal.
