Removal & Installation

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Both Front Console Covers - Remove
• 2. Center Console Rear Trim - Remove
• 3. Center Console Panel - Remove
• 4. Center Console Assembly - Remove

  Courtesy of HONDA, U.S.A., INC.

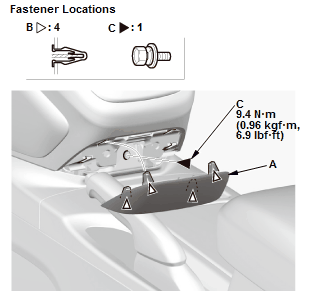

  1. Pry out the center lower cover (A) to detach the clips (B), then remove the center lower cover

  2. Remove the bolt (C).

  Courtesy of HONDA, U.S.A., INC.

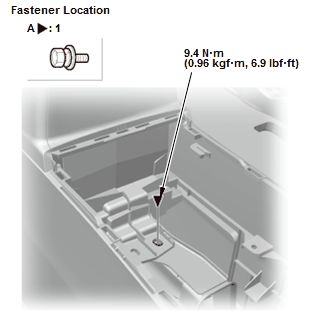

  3. Remove the bolt (A).

  Courtesy of HONDA, U.S.A., INC.

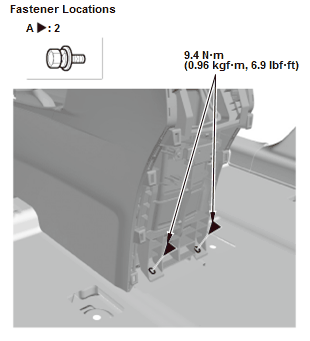

  4. Remove the bolts (A).

  Courtesy of HONDA, U.S.A., INC.

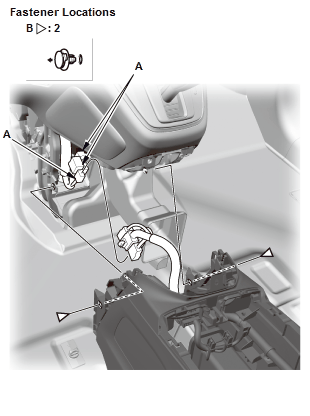

  5. Disconnect the connectors (A), and remove the clips (B). NOTE:  The positions and number of connectors vary depending on models.

  Courtesy of HONDA, U.S.A., INC.

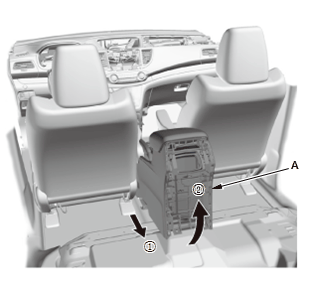

  6. Slide both front seats fully rearward, and recline the seat-backs around two thirds to the rear 7. Remove the center console (A).

• 5. All Removed Parts - Install the parts in the reverse order of removal.
