Removal & Installation

NOTE:  SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Front Passenger's Airbag - Remove
• 2. Meter Visor - Remove
• 3. Audio Unit - Remove (With Audio Unit) - Refer to: Audio Unit Removal and Installation(With Display Audio)Audio Unit Removal and Installation(With Normal Audio)
• 4. Audio-Navigation Unit - Remove (With Audio-Navigation Unit)
• 5. Center Display Visor - Remove
• 6. Passenger's Outer Vent - Remove
• 7. Climate Control Unit - Remove (With Auto A/C)
• 8. HVAC Control Unit - Remove (With Manual A/C)

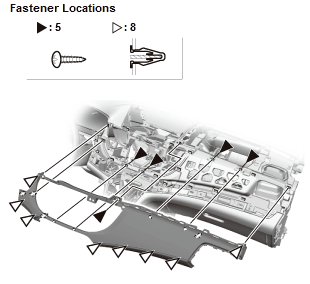

• 9. Dashboard Center Middle Trim - Remove

  Courtesy of HONDA, U.S.A., INC.

• 10. All Removed Parts - Install the parts in the reverse order of removal.
