Removal & Installation

1. Driver's Dashboard Undercover - Remove - Refer to: Passenger's Dashboard Undercover Removal and Installation Driver's Dashboard Undercover Removal and Installation
2. Driver's Dashboard Panel - Remove
3. Driver's Dashboard Lower Cover - Remove

Courtesy of HONDA, U.S.A., INC.

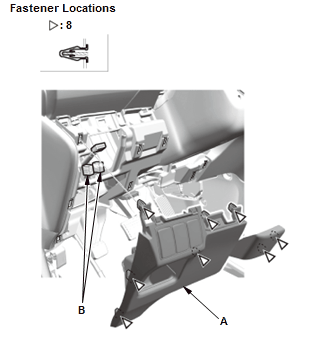

1. Pry out the driver's dashboard lower cover (A)

2. Disconnect the connectors (B).

NOTE: The positions and number of connectors vary depending on models

3. Remove the driver's dashboard lower cover.
4. All Removed Parts - Install the parts in the reverse order of removal.
