Front Individual Map Light Removal, Installation, & Test: Test

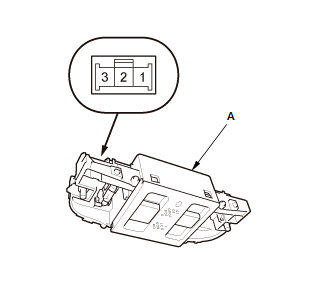

Without Moonroof

Courtesy of HONDA, U.S.A., INC.

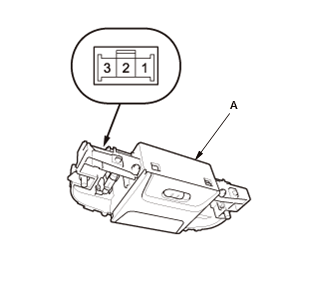

With Moonroof

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

NOTE:  When doing the front individual map light test, make sure to install the bulbs correctly.

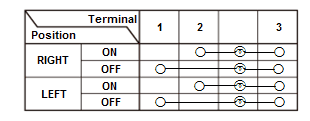

1. Check for continuity between the terminals in each switch position according to the table

2. If the continuity is not as specified, replace the bulb(s)

3. If the continuity is still not as specified, replace the front individual map light (A).
