Power Mirror Switch Test: Test

Courtesy of HONDA, U.S.A., INC.

Power Mirror Switch

Courtesy of HONDA, U.S.A., INC.

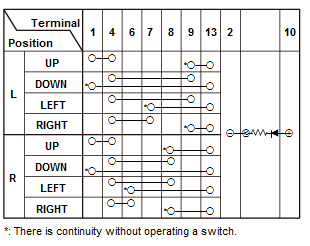

1. Check for continuity between the terminals in each switch position according to the table.

NOTE:

• When an LED is located between terminals, check if the LED lights by connecting power and ground to the LED.
• Make sure the correct test lead (+ or -) is placed on the terminal.
• When checking for continuity across the diode, use the diode setting
• Note this important operating characteristic; diode bias causes a diode to fully conduct electricity in one direction (forward), while not at all in the opposite direction (reverse).

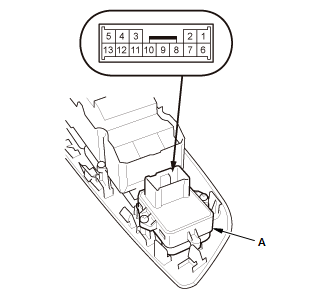

2. If the result is not as specified, replace the power mirror switch (A) .
