Front Power Seat Motor Removal and Installation: Installation

Slide Motor

1. Slide Motor - Install

Courtesy of HONDA, U.S.A., INC.

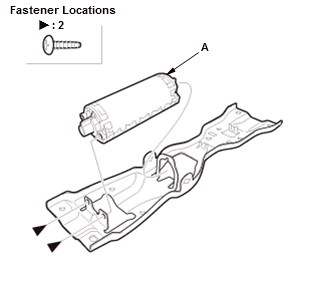

1. Install the slide motor (A).

Courtesy of HONDA, U.S.A., INC.

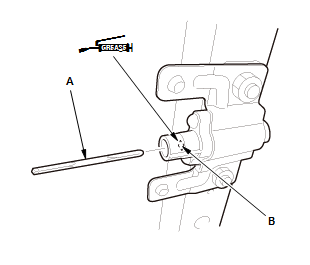

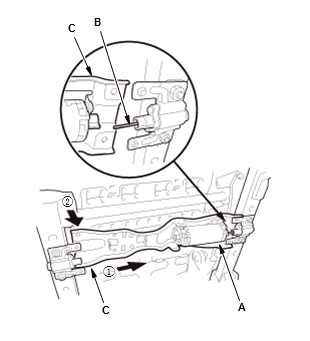

2. Install the short flex cable (A) to the worm gear (B).NOTE: Apply multipurpose grease to the worm gear area indicated by the arrows.

Courtesy of HONDA, U.S.A., INC.

3. Install the slide motor (A) to the short flex cable (B), then install the slide motor bracket (C).

Courtesy of HONDA, U.S.A., INC.

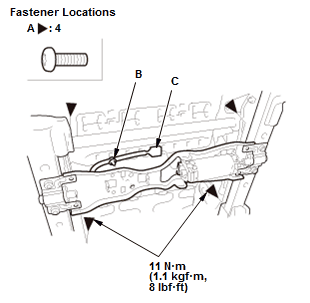

4. Install the bolts (A) with a TORX T30 bit

5. Install the harness clip (B)

6. Connect the connector (C).

Courtesy of HONDA, U.S.A., INC.

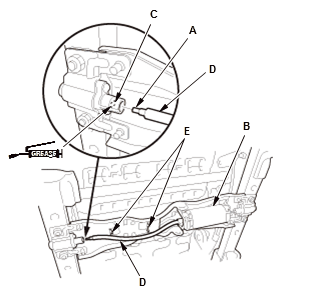

7. Install the flex cable (A) to the slide motor (B).NOTE : Take care not to kink the cable

8. Install the flex cable to the warm gear (C).NOTE : Apply multipurpose grease to the worm gear area indicated by the arrows

9. Install the cable housing (D) to the hooks (E).

Courtesy of HONDA, U.S.A., INC.

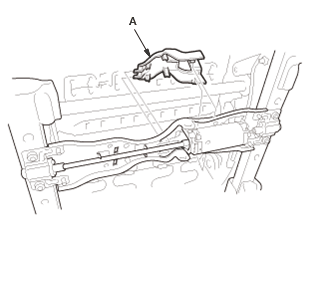

10. Install the slide motor cover (A).

2. Front Seat - Install
3. Slide Motor - Test - Refer to: Driver's Power Seat Motor Test Driver's Power Seat Motor Test (DPMS)
Front Up-Down Motor (For Some Models)

1. Front Up-Down Motor - Install

Courtesy of HONDA, U.S.A., INC.

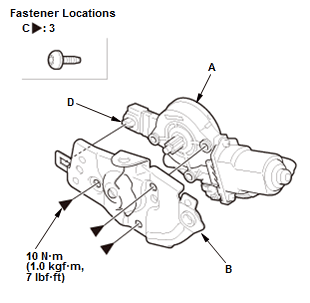

1. Install the front up-down motor (A) to the front up-down motor bracket (B)

2. Install the bolts (C) with a TORX T30 bit, then install the connector clip (D).

Courtesy of HONDA, U.S.A., INC.

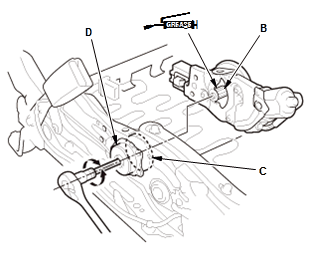

3. Install the front up-down motor assembly (A).NOTE:

Apply multipurpose grease to the pivot portions of the up-down adjuster and the motor pinion (B) indicated by the arrows.
When installing the front up-down motor assembly, adjust the gear (C) to the motor pinion by slightly rotating the brake (D) with an 8 mm hex wrench.

4. Install the bolts (E, F) with TORX T30 and T40 bits

5. Connect the connector (G).

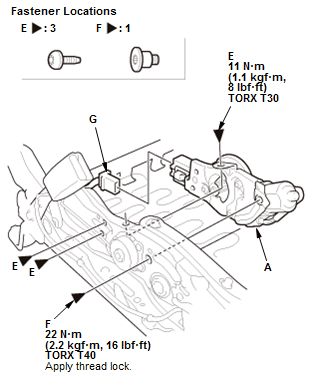

Fig 1: Front Up-Down Motor Assembly With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Front Seat Cushion Cover/Pad - Install
3. Front Up-Down Motor - Test
Rear Up-Down Motor (For Some Models)

1. Rear Up-Down Motor - Install

Courtesy of HONDA, U.S.A., INC.

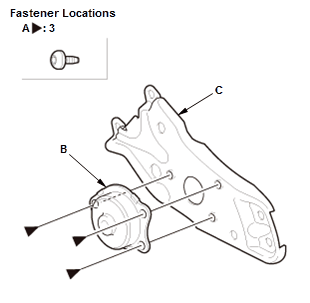

1. Remove the bolts (A) with a TORX T30 bit

2. Remove the rear brake (B) from the rear brake bracket (C).

Courtesy of HONDA, U.S.A., INC.

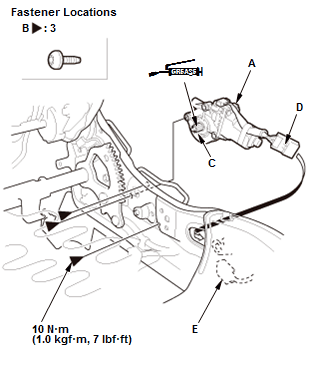

3. Install the rear up-down motor (A), then install the bolts (B) with a TORX T30 bit.NOTE : Apply multipurpose grease to the motor pinion (C) indicated by the arrows

4. Install the connector clip (D), then connect the connector (E).

Courtesy of HONDA, U.S.A., INC.

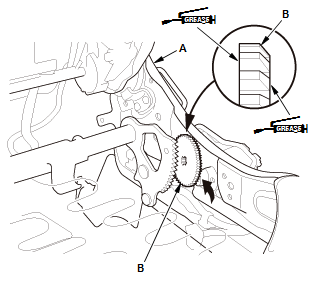

5. Manually raise the seat frame (A) fully upward

6. Install the gear (B) with its chamfered side faced the seat frame.NOTE : Apply multipurpose grease to the gear indicated by the arrows.

Courtesy of HONDA, U.S.A., INC.

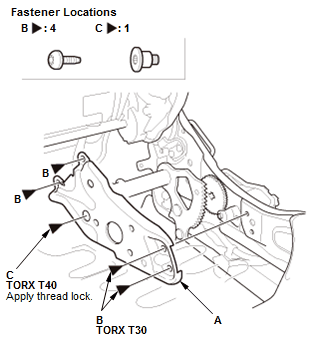

7. Install the rear brake bracket (A).NOTE: Lightly fasten all of the bolts (B, C) with TORX T30 and T40 bits.

Courtesy of HONDA, U.S.A., INC.

8. Carefully position the seat frame on its rear up-down motor side down

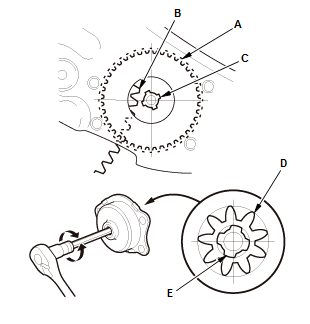

9. Engage the gear (A) with the motor pinion by hand, and center it

10. Check the positions of the sector gear (B) and the cross-shaped hole (C) in the gear

11. Align the pinion (D) on the rear brake with the sector gear with an 8mm hex wrench, and align the fingers (E) around the axle with the cross-shaped hole in the gear.

Courtesy of HONDA, U.S.A., INC.

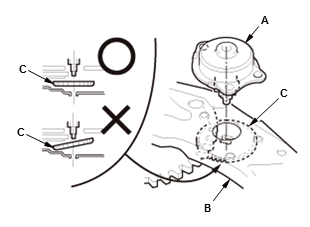

12. Install the rear brake (A) on to the rear brake bracket (B) while holding the gear (C) perpendicular to the axle of the rear brake by hand.

NOTE:

If you feel any interference between inside gears. Remove the rear brake, and repeat steps 9 to 11.
If the rear brake seats fully on the rear brake bracket with no interference, go to step 13.

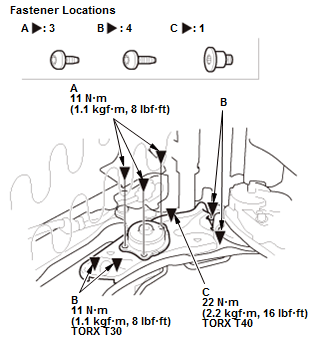

13. Install the bolts (A) with a TORX T30 bit

14. Tighten the bolts (B, C) to specified torque with TORX T30 and T40 bits.

Fig 2: Rear Brake With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

2. Front Seat Cushion Cover/Pad - Install
3. Front Seat-Back Cover/Pad - Install
4. Rear Up-Down Motor - Test
