Disassembly & Reassembly

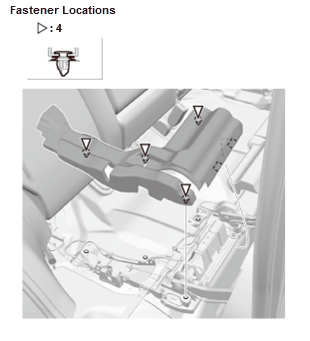

Left side

Courtesy of HONDA, U.S.A., INC.

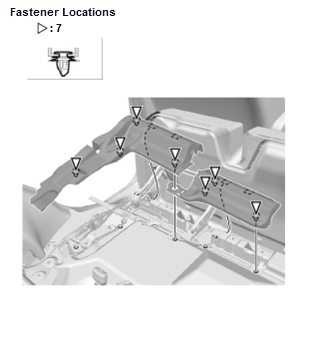

Right side

Courtesy of HONDA, U.S.A., INC.

Left rear seat cushion

Courtesy of HONDA, U.S.A., INC.

Right rear seat cushion

Courtesy of HONDA, U.S.A., INC.

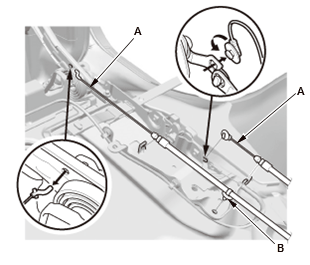

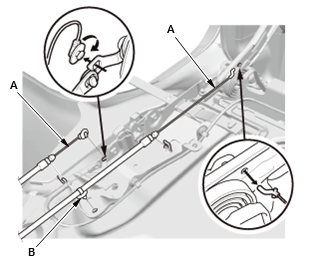

1. Detach the cables (A), and remove the cable clip (B)

2. Disconnect the cables.

Fig 1: Left Rear Seat Cushion With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

Fig 2: Right Rear Seat Cushion With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

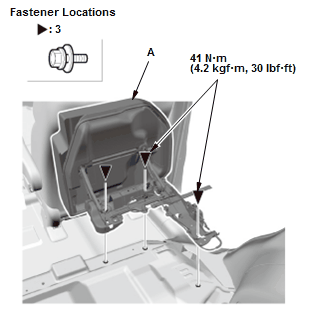

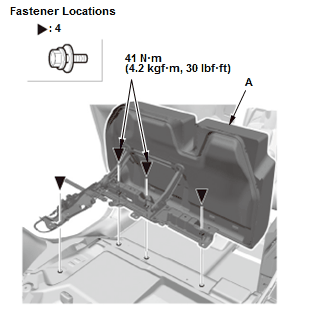

3. Remove the rear seat cushion assembly (A).

Courtesy of HONDA, U.S.A., INC.

NOTE:  The left rear seat cushion is shown; the right rear seat cushion is symmetrical.

Courtesy of HONDA, U.S.A., INC.

NOTE:  The left rear seat cushion is shown; the right rear seat cushion is symmetrical.

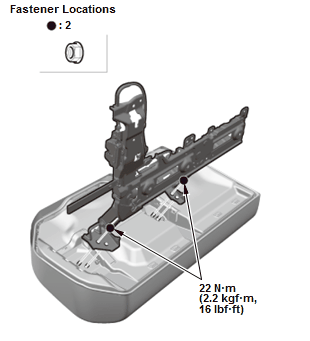

Fig 3: Rear Seat Cushion Foot Assembly With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

NOTE:  The left rear seat cushion is shown; the right rear seat cushion is symmetrical.

Left rear seat cushion

Courtesy of HONDA, U.S.A., INC.

Right rear seat cushion

Courtesy of HONDA, U.S.A., INC.

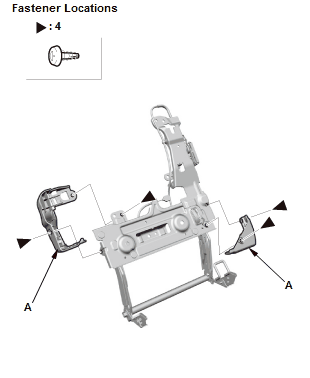

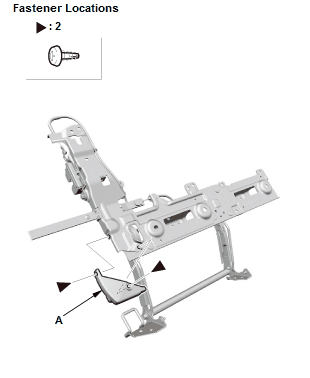

1. Remove the cover(s) (A).

Courtesy of HONDA, U.S.A., INC.

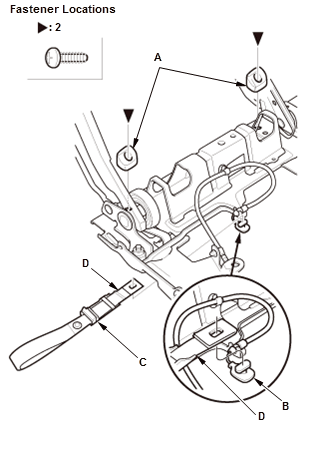

2. Remove the rear seat cushion foot dampers (A) 3. Disconnect the rear seat cushion control cable (B) 4. Remove the rear seat cushion strap guide (C) and the rear seat cushion strap (D).

Courtesy of HONDA, U.S.A., INC.

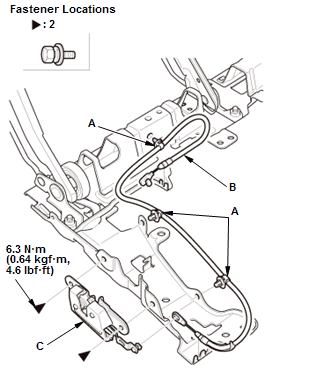

5. Detach the cable clips (A), then remove the rear seat cushion control cable (B) 6. Remove the rear seat cushion latch (C).
