Removal & Installation

1. Detach the front door plastic cover as needed.

Courtesy of HONDA, U.S.A., INC.

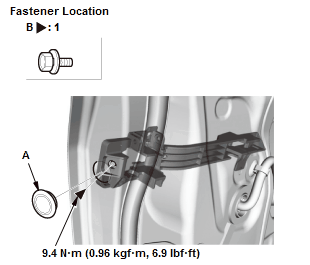

1. Remove the plug cap (A), then remove the bolt (B).

Courtesy of HONDA, U.S.A., INC.

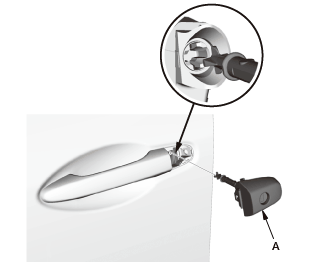

2. Remove the front door lock cylinder (A).

Courtesy of HONDA, U.S.A., INC.

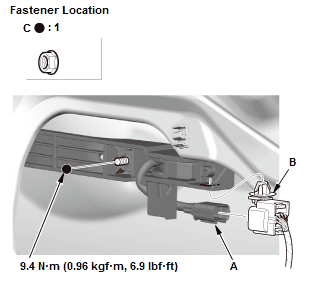

1. With keyless access system: Disconnect the connector (A), and detach the connector clip (B)

2. Remove the nut (C).

Courtesy of HONDA, U.S.A., INC.

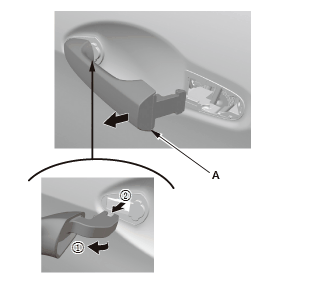

3. Remove the front door outer handle (A).

Courtesy of HONDA, U.S.A., INC.

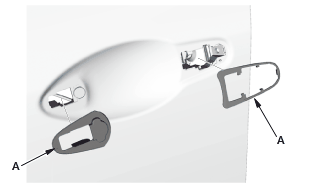

4. Remove the front door outer handle seals (A).

Courtesy of HONDA, U.S.A., INC.

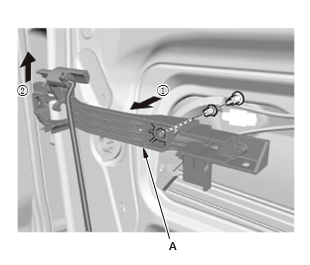

5. Remove the front door outer handle base (A).

Courtesy of HONDA, U.S.A., INC.

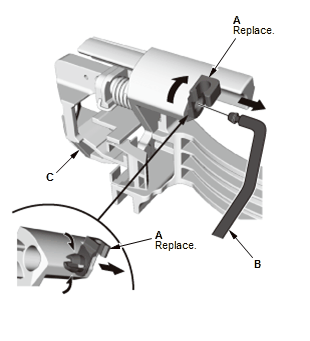

6. If necessary, release the rod fastener (A), then remove the front door outer handle rod (B) 7. Remove the rod fastener from the front door outer handle base (C), then replace it with a new one.

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

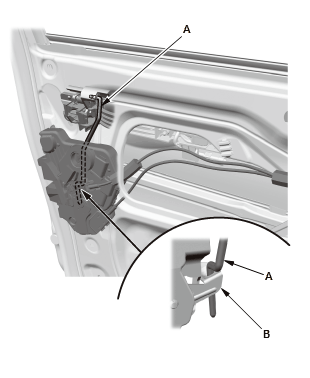

NOTE:  Make sure the front door outer handle rod (A) goes into the latch (B) securely.
