Wipers/Washers System Description - Components
Windshield Wiper Motor
The windshield wiper motor is controlled by the MICU. Auto-stop contacts are provided in each motor, and the motor stop position is feed back to the MICU. When the motor temperature becomes high because of an overload etc., the motor is stopped temporarily by its circuit breaker, interrupting the circuit.
Rear Window Wiper Motor
The rear window wiper motor is controlled by the MICU. Auto-stop contacts are provided in each motor, and the motor stop position is feed back to the MICU. When the motor temperature becomes high because of an overload etc., the motor is stopped temporarily by its circuit breaker, interrupting the circuit.
Wiper/Washer Switch
The wiper/washer switch is installed on the steering column. The wiper/washer switch inputs the switch status to the MICU.
Washer Motor

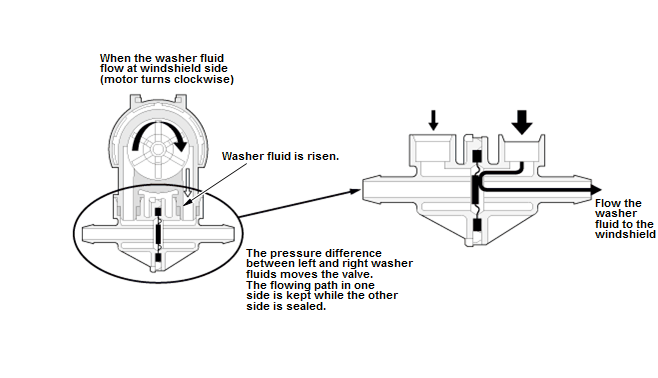

The MICU controls the washer motor with the signal inputs from the ignition switch and washer switch. The integral washer motor uses the differential pressure valves and washing can be switched between the windshield and rear window according to the rotating direction.
Automatic Lighting/Rain Sensor (With Automatic Wiper)

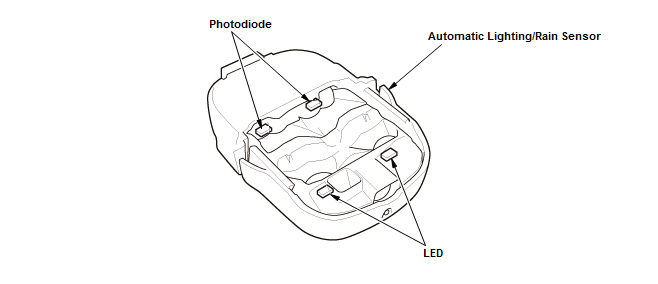

The automatic lighting/rain sensor consists of photodiode and LED, and located on the windshield near the rear view mirror. The automatic wiper signal or the automatic wiper fail signal is sent via the B-CAN to the MICU.
