Test Procedure

1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Pillar Areas Interior Trim Removal and Installation - Tailgate Areas Interior Trim Removal and Installation - Cargo Areas Interior Trim Removal and Installation - Rear Side Area Interior Trim Removal and Installation - Door Areas
2. Tailgate Release Actuator - Test

Courtesy of HONDA, U.S.A., INC.

Courtesy of HONDA, U.S.A., INC.

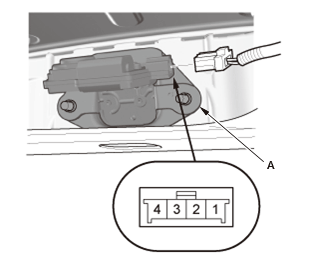

1. Disconnect the connector.

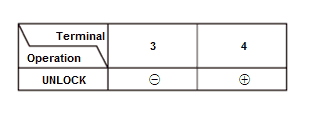

2. Check the actuator operation by connecting 12 volt battery power and ground according to the table.

3. If the actuator does not work, the tailgate release actuator is faulty; replace the tailgate latch (A) .
3. All Removed Parts - Install - Install the parts in the reverse order of removal.
