Power Tailgate Component Location Index

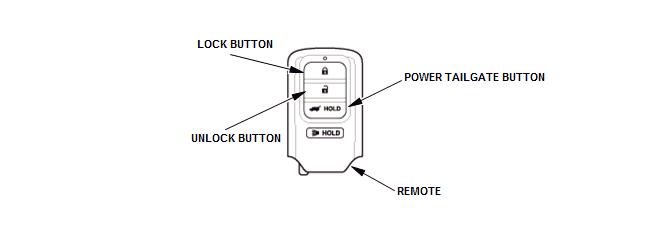

GHH49903

Courtesy of HONDA, U.S.A., INC.

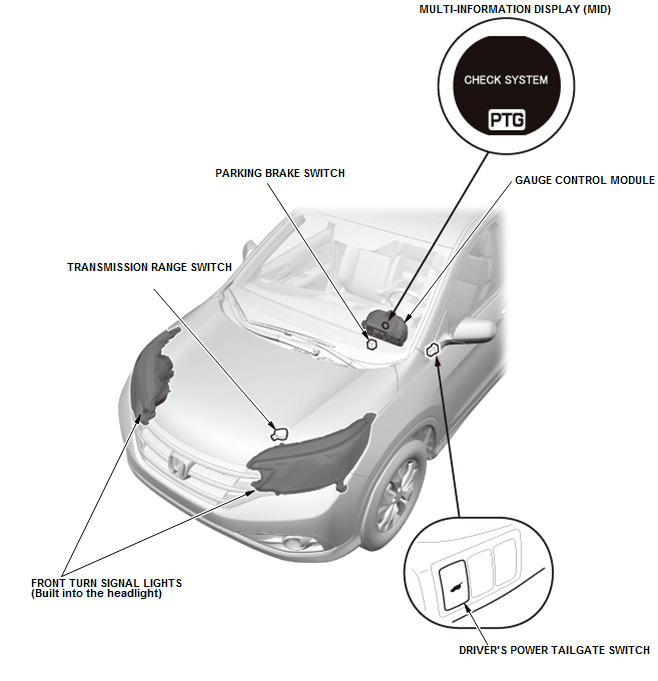

GHH49904

Courtesy of HONDA, U.S.A., INC.

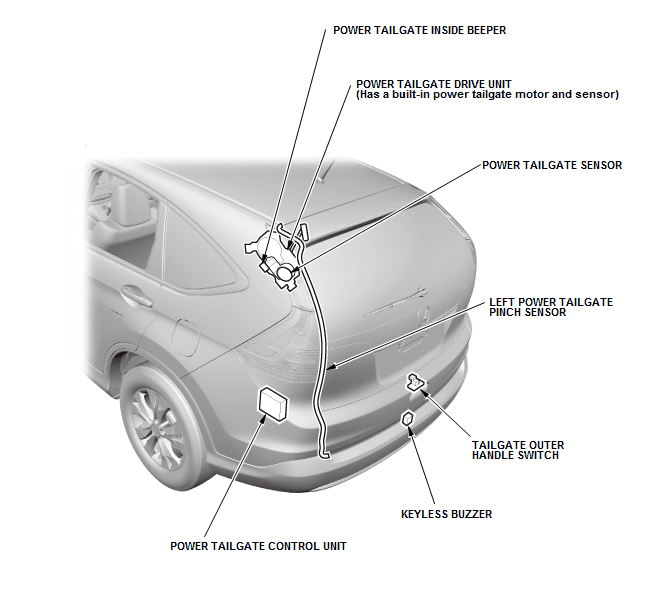

GHH49905

Courtesy of HONDA, U.S.A., INC.

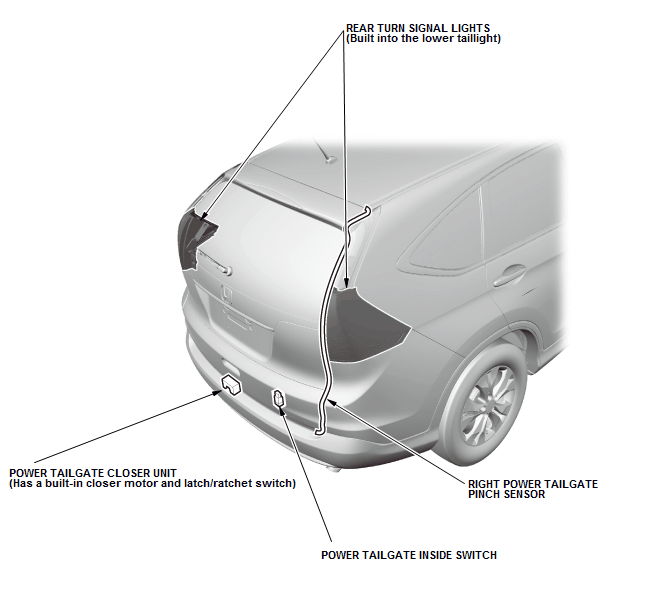

GHH49906

Courtesy of HONDA, U.S.A., INC.
