Removal & Installation

1. Roof Rail Cover - Remove

Courtesy of HONDA, U.S.A., INC.

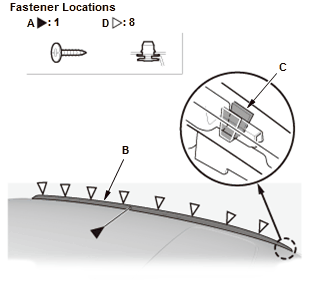

1. Remove the screw (A) with a TORX T15 bit, then pull up the clip area of the roof rail cover (B).

NOTE: Do not pull up the roof rail cover too high so that the hook (C) will not get damaged.

Courtesy of HONDA, U.S.A., INC.

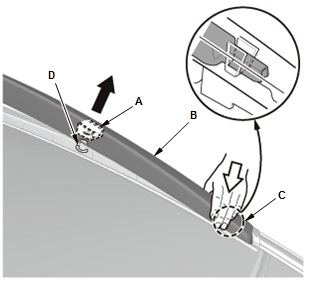

2. Pull up the clip area (A) of the roof rail cover (B).

NOTE: Hold the hook area (C) so that it will not get damaged when removing the clip (D) of the forefront.

Courtesy of HONDA, U.S.A., INC.

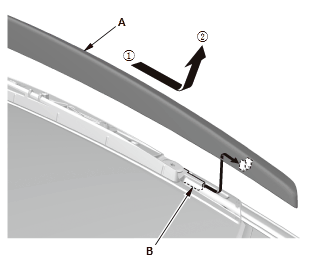

3. Slide the roof rail cover (A) forward to release it from the projection (B) of the roof rail base

4. Remove the roof rail cover.

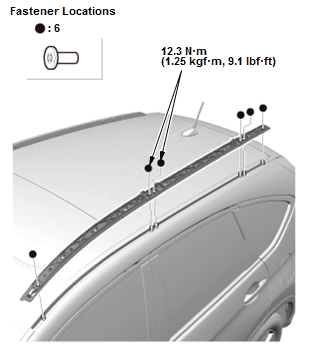

2. Roof Rail Base - Remove

Courtesy of HONDA, U.S.A., INC.
3. Rear Roof Side Trim - Remove

Courtesy of HONDA, U.S.A., INC.

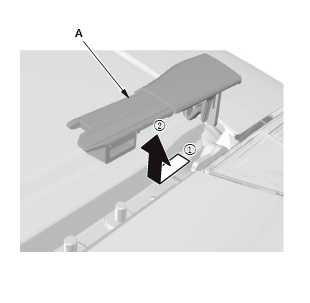

1. If necessary, slide the rear roof side trim (A) forward to release it from the body.
4. All Removed Parts - Install the parts in the reverse order of removal.
