Removal & Installation

NOTE:  If the tailgate latch does not open by the tailgate open switch, remove the maintenance cover (A) from the tailgate lower trim panel, then turn the emergency lever (B) clockwise as shown.

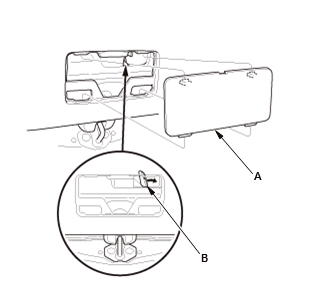

Without power tailgate

Courtesy of HONDA, U.S.A., INC.

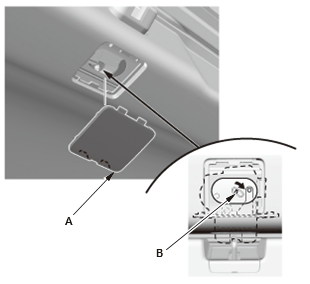

With power tailgate

Courtesy of HONDA, U.S.A., INC.

• 1. Tailgate Lower Trim Panel - Remove - Refer to: Interior Trim Removal and Installation - Pillar AreasInterior Trim Removal and Installation - Tailgate AreasInterior Trim Removal and Installation - Cargo AreasInterior Trim Removal and Installation - Rear Side AreaInterior Trim Removal and Installation - Door Areas
• 2. Tailgate Latch - Remove

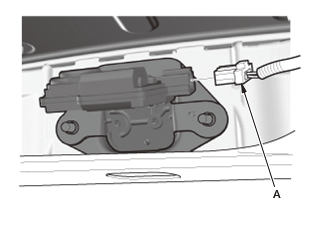

  Without power tailgate

  Courtesy of HONDA, U.S.A., INC.

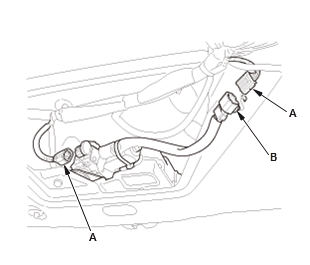

  With power tailgate

  Courtesy of HONDA, U.S.A., INC.

  1. Disconnect the connector(s) (A), then detach the connector clip (B).

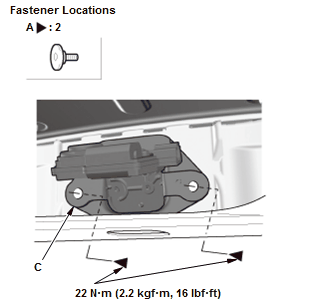

  Fig 1: Tailgate Latch (Without Power Tailgate) With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

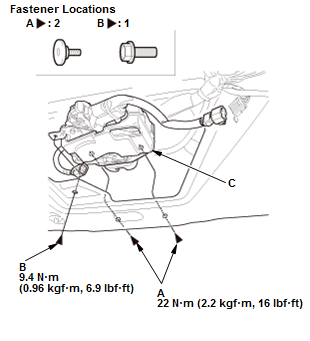

  Fig 2: Tailgate Latch (With Power Tailgate) With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  2. Remove the bolts (A, B), then remove the tailgate latch (C).

• 3. All Removed Parts - Install the parts in the reverse order of removal.
