Removal & Installation

Front Side Washer Tube

• 1. Hood Insulator - Remove
• 2. Center Cowl Cover - Remove
• 3. Right Front Inner Fender - Remove - Refer to: Rear Inner Fender Removal and Installation Front Inner Fender Removal and Installation
• 4. Floor Carpet - Remove

  1. Remove the floor carpet as needed.

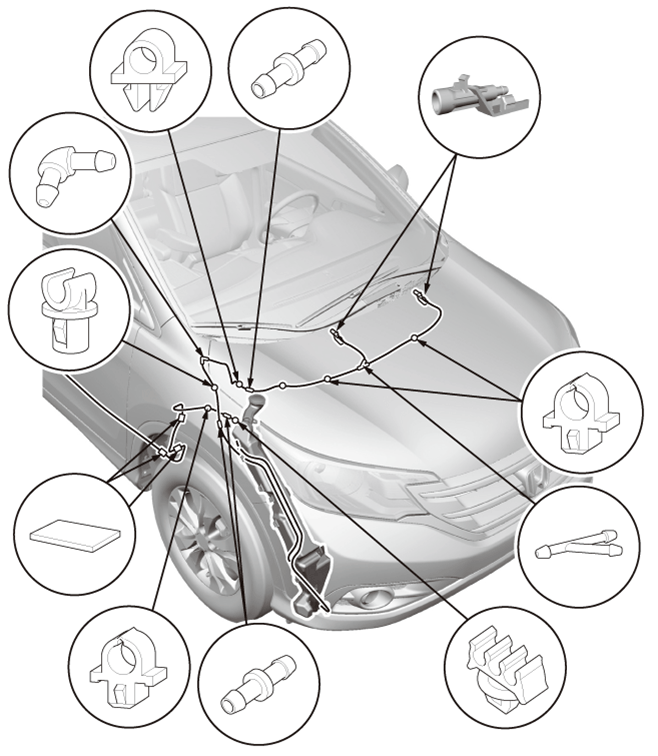

• 5. Washer Tube - Remove

  1. Remove the washer tube(s).

  Courtesy of HONDA, U.S.A., INC.

• 6. All Removed Parts - Install the parts in the reverse order of removal.

  Rear Side Washer Tube

• 1. Carpet - Remove

  1. Remove the carpet as needed.

• 2. Headliner - Remove

  1. Remove the headliner as needed.

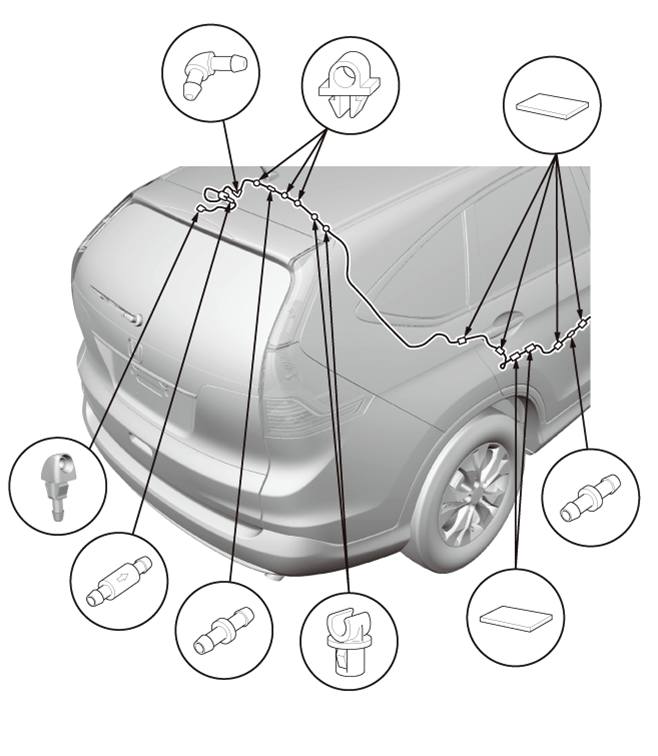

• 3. Washer Tube - Remove

  1. Remove the washer tube(s).

  Courtesy of HONDA, U.S.A., INC.

• 4. All Removed Parts - Install the parts in the reverse order of removal.
