Removal & Installation

1. Driver's Dashboard Panel - Remove

Courtesy of HONDA, U.S.A., INC.

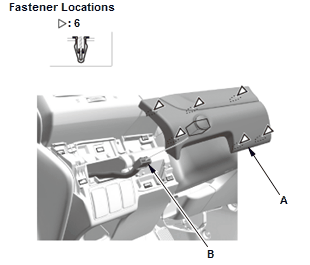

1. Pry out the driver's dashboard panel (A)

2. Disconnect the connector (B)

3. Remove the driver's dashboard panel.
2. Driver's Dashboard Panel Trim - Remove

Courtesy of HONDA, U.S.A., INC.

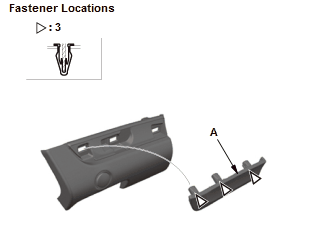

1. If necessary, remove the driver's dashboard panel trim (A).
3. All Removed Parts - Install the parts in the reverse order of removal.
