Under-Cowl Panel Replacement

1. Under-Cowl Panel - Remove

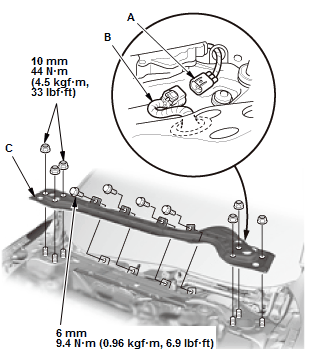

Fig 1: Under-Cowl Panel With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A)

2. Remove the bolts and the nuts

3. Pull out the wire harness (B) from the under-cowl panel (C), then remove the under-cowl panel.
2. All Removed Parts - Install - Install the parts in the reverse order of removal.
