Front Seat Lumbar Support Removal and Installation: Replacement

3. Front Seat Lumbar Support - Remove

Courtesy of HONDA, U.S.A., INC.

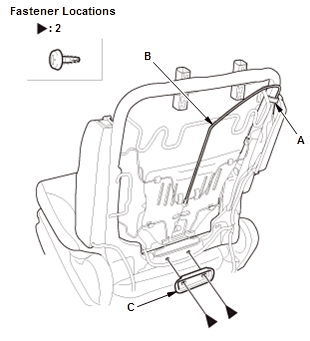

1. Remove the cable band (A) fastening the lumbar support cable (B)

2. Remove the lumbar support plate (C).

Courtesy of HONDA, U.S.A., INC.

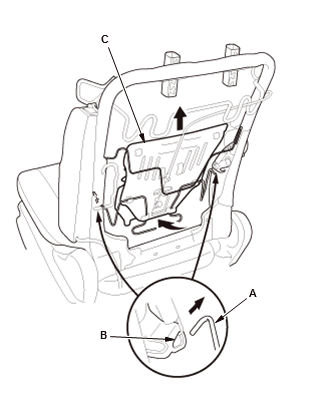

3. Release the lower wire (A) from both seat-back side frames (B), then remove the lumbar support base (C) from the frame.

Courtesy of HONDA, U.S.A., INC.

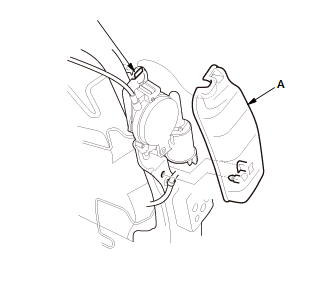

4. Remove the power lumbar support motor cover (A).

Courtesy of HONDA, U.S.A., INC.

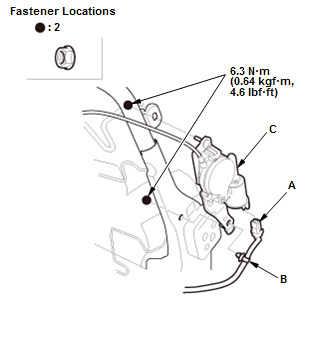

5. Disconnect the connector (A), and detach the harness clip (B)

6. Remove the lumbar support motor (C), then remove the lumbar support.

4. All Removed Parts - Install - Install the parts in the reverse order of removal.
