Rear Seat-Back Cover Removal and Installation: Replacement

1. Rear Seat-Back - Remove

2. Rear Seat Head Restraint - Remove

GHH51249

Courtesy of HONDA, U.S.A., INC.

Outside Head Restraint

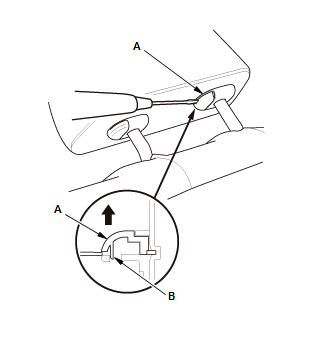

1. Push a flat-tip screwdriver into the notch at the center of the knob (A) to release the tab (B).

GHH51250

Courtesy of HONDA, U.S.A., INC.

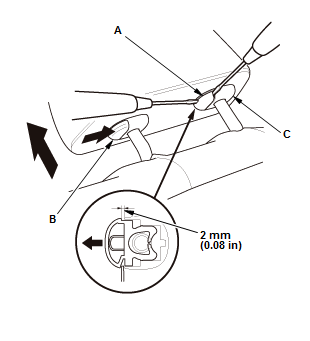

2. Insert a 5 mm (0.2 in) thickness flat-tip screwdriver in one side of the notch on both sides of the knob (A), then the knob is moved out about 2 mm (0.08 in)

3. Push and hold the knob (B), then remove the head restraint (C).

GHH51251

Courtesy of HONDA, U.S.A., INC.

Center Rear Head Restraint

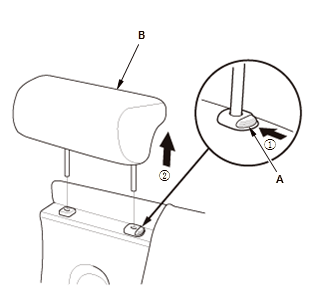

4. Push and hold the knob (A), then remove the head restraint (B).

3. Rear Seat Armrest - Remove

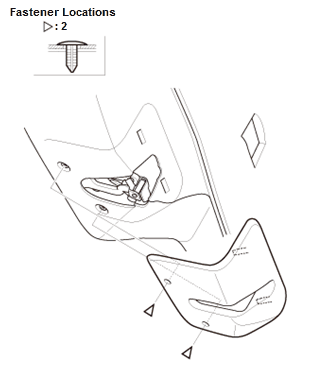

4. Rear Seat-Back Latch Cover - Remove

Courtesy of HONDA, U.S.A., INC.

5. Rear Seat-Back Cover - Remove

GHH51253

Courtesy of HONDA, U.S.A., INC.

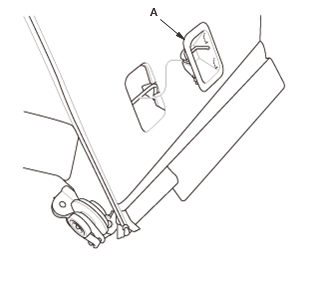

1. Remove the tether anchor cover (A).

Left rear seat-back

GHH51254

GHH51255

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right rear seat-back

GHH51254

GHH51255

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

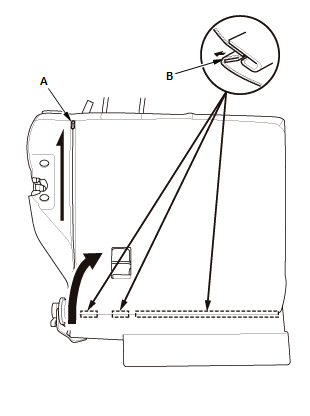

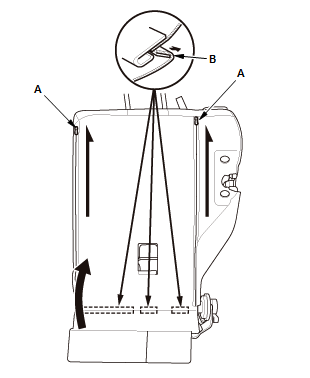

2. Unzip the rear seat-back cover (A)

3. Release the hook strips (B).

GHH51256

Courtesy of HONDA, U.S.A., INC.

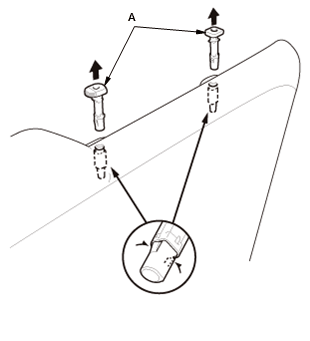

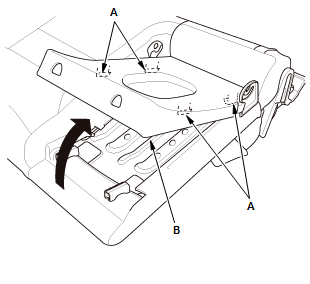

4. Remove the head restraint guides (A).

GHH51257

Courtesy of HONDA, U.S.A., INC.

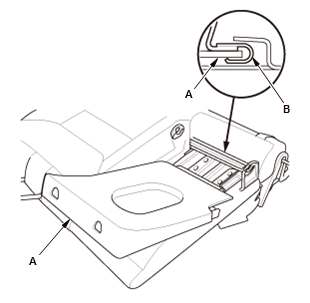

5. Left rear seat-back: Release the hooks (A), then pull up the armrest back panel (B).

GHH51258

Courtesy of HONDA, U.S.A., INC.

6. Left rear seat-back: Remove the armrest back panel (A) from the hook strip (B).

GHH51259

Courtesy of HONDA, U.S.A., INC.

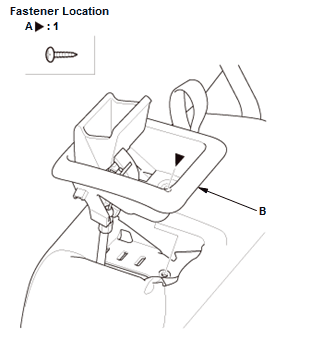

7. Remove the screw (A), then pull out the lock knob trim (B).

GHH51260

Courtesy of HONDA, U.S.A., INC.

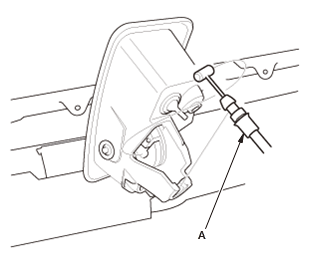

8. Disconnect the rear seat-back lock knob control cable (A).

GHH51261

Courtesy of HONDA, U.S.A., INC.

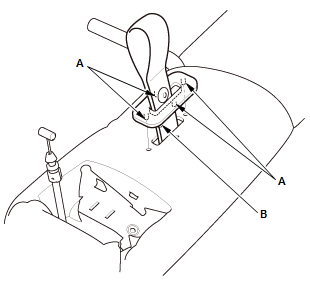

9. Release the hooks (A) on the strap cover (B).

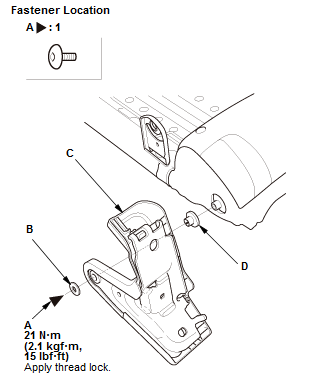

10. Remove the bolt (A) with a 6 mm hex wrench.NOTE : Apply medium strength liquid thread lock to the bolt before reinstallation

11. Remove the washer (B), the rear seat inner pivot (C), and the bushing (D).

Fig 1: Rear Seat Inner Pivot With Torque Specifications

GHH51262

Courtesy of HONDA, U.S.A., INC.

GHH51263

Courtesy of HONDA, U.S.A., INC.

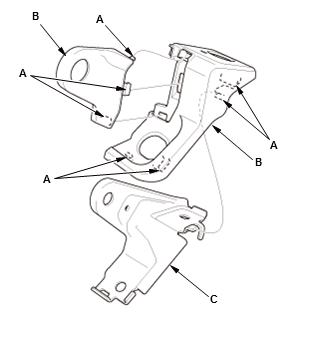

12. Release the hooks (A), then remove the covers (B) from the rear seat inner pivot (C).

GHH51264

Courtesy of HONDA, U.S.A., INC.

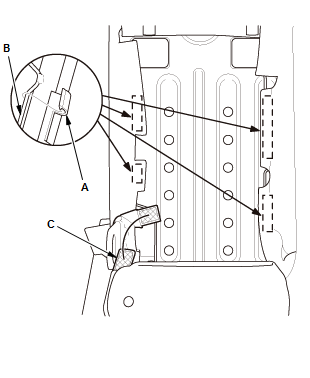

13. Left rear seat-back: Release the hook strips (A) from the rear seat-back frame (B)

14. Left rear seat-back: Release the hook and loop fastener (C).

GHH51265

Courtesy of HONDA, U.S.A., INC.

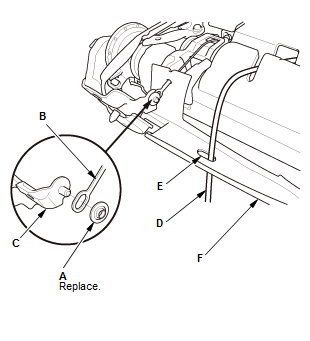

15. Remove the push nut (A), then disconnect the rear seat-back cancel control cable (B) from the rear seat-back pivot (C)

16. Pull out the rear seat arrange control cable (D) through the hole (E) in the rear seat-back cover (F).

GHH51266

Courtesy of HONDA, U.S.A., INC.

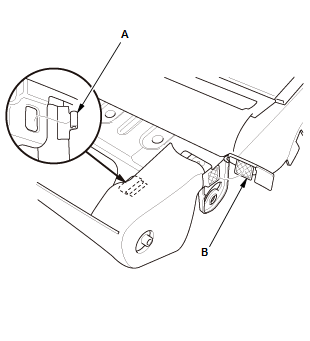

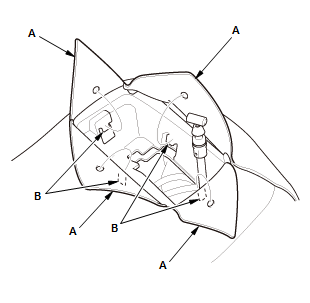

17. Release the hook strips (A)

18. Release the hook and loop fastener (B).

GHH51267

Courtesy of HONDA, U.S.A., INC.

19. Detach the rear seat-back cover (A) from the hooks (B).

Left rear seat-back

GHH51268

GHH51269

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

Right rear seat-back

GHH51268

GHH51269

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

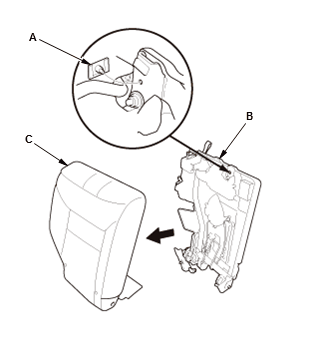

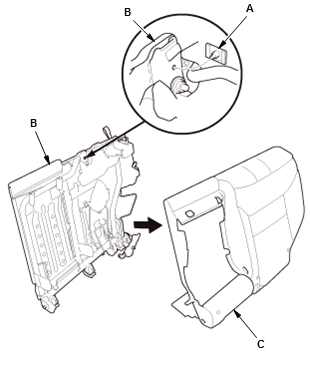

20. Detach the clip (A) from the rear seat-back frame (B), then remove the seat-back cover/pad (C).

GHH51270

GHH51271

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

GHH51270

GHH51271

Courtesy of HONDA, U.S.A., INC.HONDA, U.S.A., INC.

21. Remove the upholstery rings (A), then remove the rear seat-back cover (B).

6. All Removed Parts - Install

Courtesy of HONDA, U.S.A., INC.

1. Install the parts in the reverse order of removal.

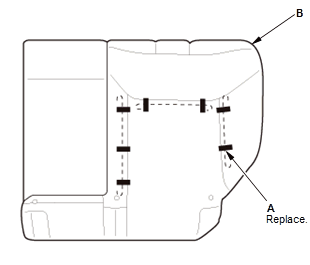

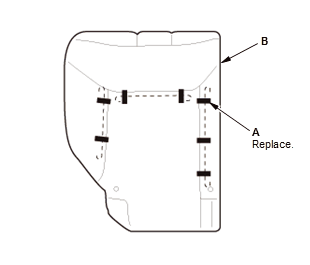

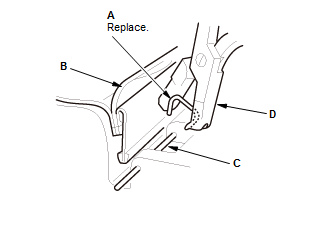

NOTE: Replace all of the upholstery rings (A) fastening the seat-back cover (B) to the pad wires (C) with new ones using commercially available upholstery ring pliers (D).
