Driver's Power Seat Adjustment Switch Test: Test

SRS components are located in this area. Review the SRS component locations and the precautions and procedures before doing repairs or service.

• 1. Front Seat Recline Cover - Remove

  NOTE:  If removing the driver's seat recline cover, you do not need to remove the driver's seat.

• 2. Power Seat Adjustment Switch - Test

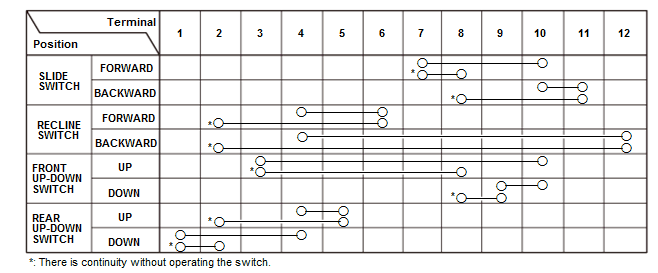

  1. Check for continuity between the terminals in each switch position according to the table.

  Courtesy of HONDA, U.S.A., INC.

  Courtesy of HONDA, U.S.A., INC.

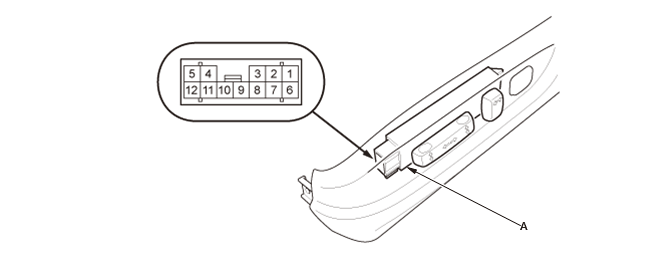

  2. If the continuity is not as specified, replace the driver's power seat adjustment switch (A) - Refer to: Driver's Power Seat Adjustment Switch Removal and InstallationDriver's Power Seat Adjustment Switch Removal and Installation(DPMS) .

• 3. All Removed Parts - Install the parts in the reverse order of removal.
