Moonroof Sunshade Removal and Installation: Replacement

2. Sunshade - Remove

Courtesy of HONDA, U.S.A., INC.

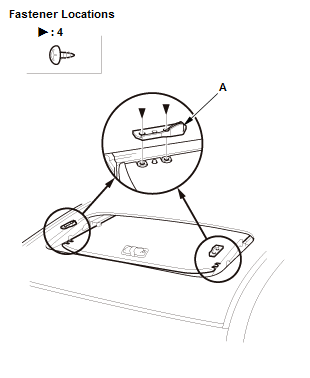

1. Remove both sunshade slider spacers (A).

Courtesy of HONDA, U.S.A., INC.

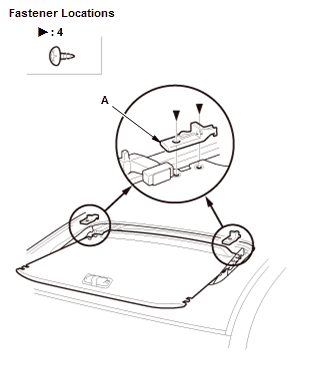

2. Remove both rear sunshade hooks (A).

Courtesy of HONDA, U.S.A., INC.

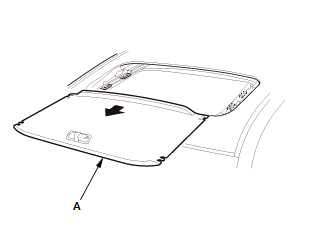

3. Remove the sunshade (A).

Courtesy of HONDA, U.S.A., INC.

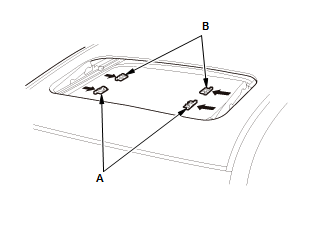

4. Remove both sunshade front sliders (A) and both sunshade rear sliders (B).

3. Sunshade Handle - Remove

Courtesy of HONDA, U.S.A., INC.

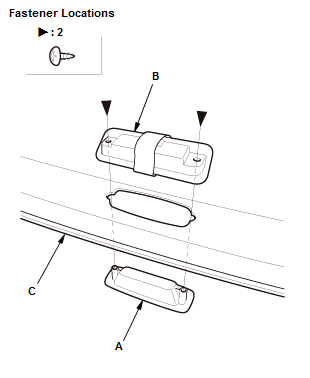

1. If necessary, remove the sunshade handle (A) and the sunshade handle bracket (B) from the sunshade (C).
4. All Removed Parts - Install - Install the parts in the reverse order of removal.
