Moonroof Wind Deflector Removal and Installation: Replacement

1. Wind Deflector - Remove

Courtesy of HONDA, U.S.A., INC.

1. Open the glass fully

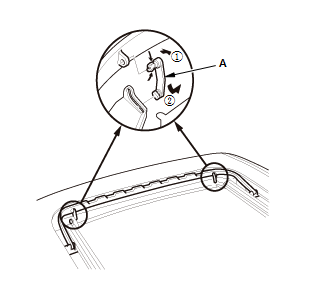

2. Remove both deflector links (A).

Courtesy of HONDA, U.S.A., INC.

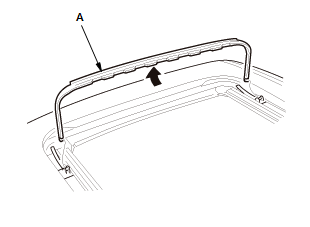

3. Remove the wind deflector (A).

Courtesy of HONDA, U.S.A., INC.

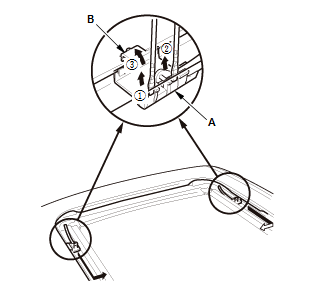

4. Pry up on the deflector arm bases (A) with a flat-tip screwdriver, and release the hooks (B), then remove both deflector arm bases.

2. All Removed Parts - Install - Install the parts in the reverse order of removal.
3. Moonroof Control Unit - Reset
