Moonroof - Testing & Troubleshooting
>>
Circuit Diagram
>>

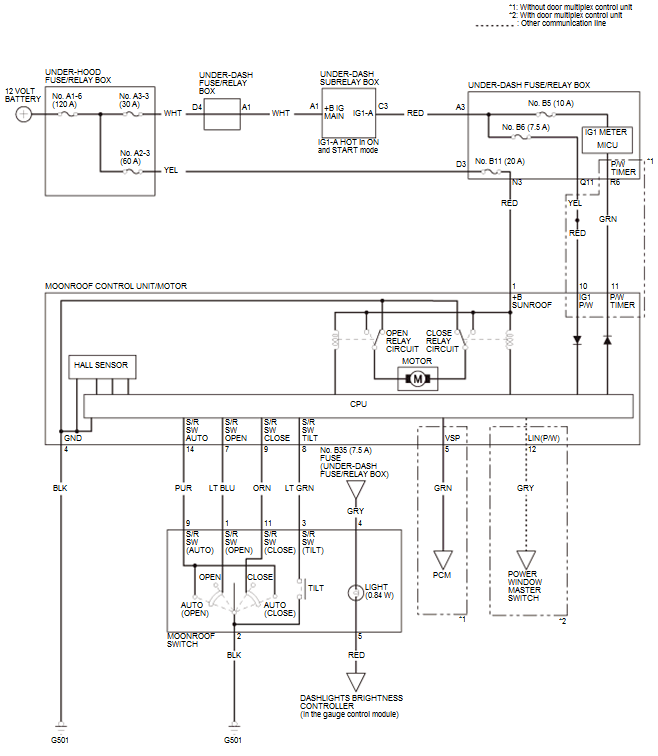

Moonroof Circuit Diagram
Moonroof Circuit Diagram
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
