Brake System - Service Information
>>
Overhaul
>>
Front Brake Caliper Overhaul
>>
Exploded View
Exploded View
1. Front Brake Caliper - Exploded View
Exploded View

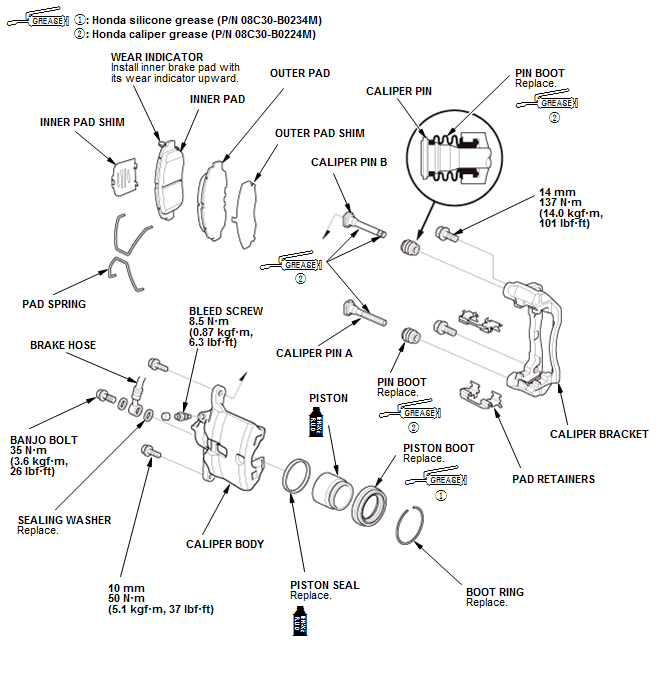

KA (2WD), KC (2WD)
Fig 1: Exploded View Of Front Brake Caliper (KA (2WD), KC (2WD)) With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

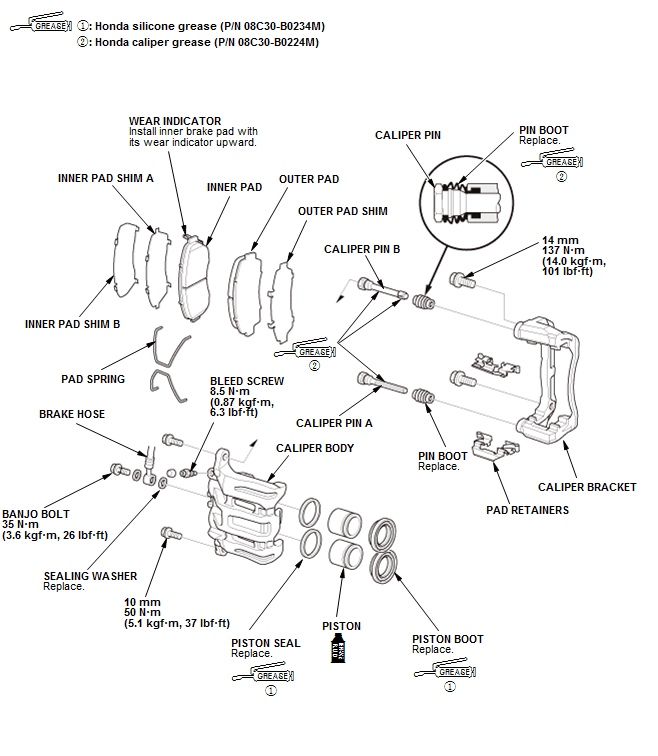

KA (AWD), KC (AWD), KX
Fig 2: Exploded View Of Front Brake Caliper (KA (AWD), KC (AWD), KX) With Torque Specifications
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
Courtesy of HONDA, U.S.A., INC.
