Brake Booster Removal & Installation: Removal

1. Air cleaner - Remove
2. Master Cylinder - Remove
3. Brake Lines - Remove

Courtesy of HONDA, U.S.A., INC.

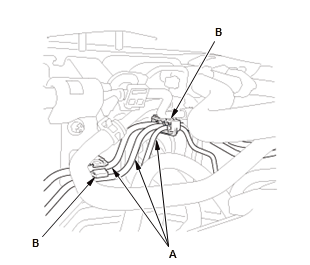

1. Remove the brake lines (A) from the brake line clamps (B).
4. Brake Booster Vacuum Hose - Disconnect

Courtesy of HONDA, U.S.A., INC.

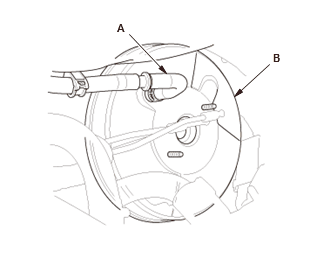

1. Disconnect the brake booster vacuum hose (A) from the brake booster (B).
5. Engine Harness Holder - Move

Courtesy of HONDA, U.S.A., INC.

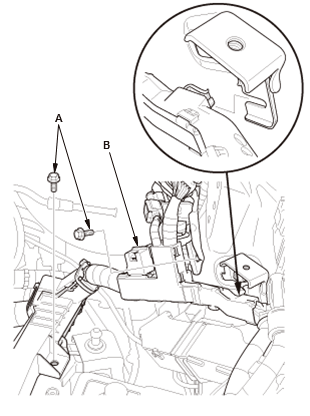

1. Remove the bolts (A)

2. Move the engine harness holder (B) aside.

6. Brake Booster - Remove

Courtesy of HONDA, U.S.A., INC.

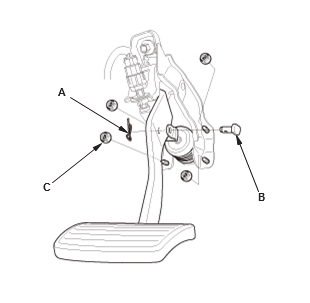

1. Remove the lock pin (A)

2. Remove the clevis pin (B)

3. Remove the brake booster mounting nuts (C).

Courtesy of HONDA, U.S.A., INC.

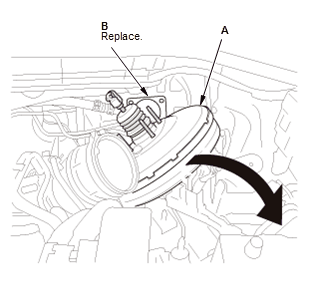

4. Pull the brake booster (A) forward

5. Remove the brake booster from the engine compartment.

NOTE:

Be careful not to damage the brake booster mounting surfaces and the threads on the booster studs.
Be careful not to bend or damage the brake lines.

6. Remove the brake booster gasket (B).
