Removal & Installation

NOTE: Do not try to disassemble the brake pedal stroke sensor. Replace the brake pedal assembly with a new part, if necessary.

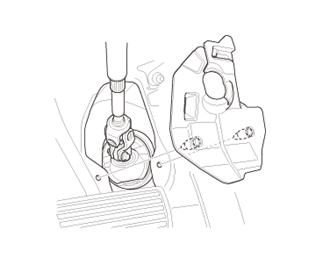

1. Steering Joint Cover - Remove

Courtesy of HONDA, U.S.A., INC.
2. Driver's Dashboard Undercover - Remove - Refer to: Passenger's Dashboard Undercover Removal and Installation Driver's Dashboard Undercover Removal and Installation
3. Brake Pedal - Remove

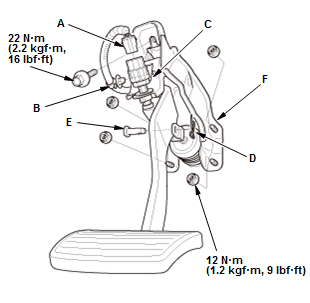

Fig 1: Brake Pedal Replacement Components With Torque Specifications
Courtesy of HONDA, U.S.A., INC.

1. Disconnect the connector (A)

2. Remove the harness clip (B)

3. Remove the brake pedal position switch (C) by turning it 45° counterclockwise

4. Remove the lock pin (D) and the clevis pin (E)

5. Remove the brake pedal with the bracket (F).
4. All Removed Parts - Install the parts in the reverse order of removal.
5. Brake Pedal and Brake Pedal Position Switch - Adjust
