Removal & Installation

NOTE:  Keep grease away from the brake disc and the brake pads.

• 1. Vehicle - Lift
• 2. Front Wheel - Remove
• 3. Brake Caliper - Remove

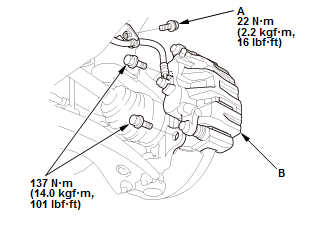

  Fig 1: Brake Hose Mounting Bolt & Caliper Assembly With Torque Specifications

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the brake hose mounting bolt (A)

  2. Remove the caliper assembly (B).

  NOTE:

  • To prevent damage to the caliper assembly or brake hose, use a short piece of wire to hang the caliper assembly from the undercarriage.
  • Do not twist the brake hose excessively.
• 4. Brake Disc - Remove

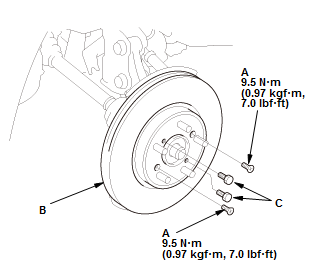

  Courtesy of HONDA, U.S.A., INC.

  1. Remove the brake disc/drum flathead screws (A)

  2. Remove the brake disc (B).

  NOTE:  If the brake disc is stuck to the front hub, thread two 8 x 1.25 mm bolts (C) into the brake disc to push it away from the front hub. Turn each bolt 90 degrees at a time to prevent the brake disc from binding.

• 5. All Removed Parts - Install

  1. Install the brake disc in the reverse order of removal.

  NOTE:  Before installing the brake disc, clean the mating surfaces between the front hub and the inside of the brake disc.

• 6. Brake Disc Runout - Inspect
